Analog Devices ADXL356BEZ-RL7 — Analog & Data Acquisition

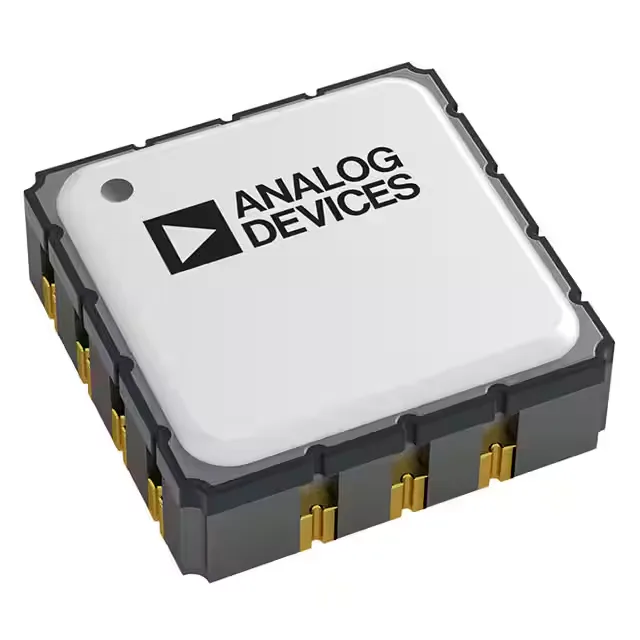

ADXL356BEZ-RL7 Analog Devices 3-Axis Accelerometer

MPNADXL356BEZ-RL7
End of Life

Analog Devices ADXL356BEZ-RL7 triple-axis analog accelerometer, X/Y/Z axes, selectable ±10g/±20g range, 40-80 mV/g sensitivity, 1 Hz to 1 kHz bandwidth, 14-CLCC surface-mount package, -40°C to 125°C.

$79.7Ref. price · indicative, final on quote
Packaging14-CLCC
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ADXL356BEZ-RL7 specifications
ParameterValue
TypeAnalog
Output typeAnalog Voltage
MountingSurface Mount
Voltage2.25V ~ 3.6V
Operating temperature-40°C ~ 125°C (TA)
Bandwidth1Hz ~ 1kHz
AxisX, Y, Z
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesAdjustable Bandwidth, Selectable Scale
Case14-CLCC
Acceleration range±10g, ±20g
Sensitivity (mV (g))40 (±20g) ~ 80 (±10g)

Product details

Parametric fit for vibration and motion sensing

The ADXL356BEZ-RL7 is a triple-axis analog-output accelerometer covering X, Y, and Z axes with a user-selectable acceleration range of ±10g or ±20g. Sensitivity scales with the range: 80 mV/g at ±10g and 40 mV/g at ±20g, so the full-scale output voltage spans the same analog swing regardless of which range is selected. Bandwidth is adjustable from 1 Hz to 1 kHz via external capacitors on the XOUT, YOUT, and ZOUT pins — a single capacitor per axis sets the corner frequency, letting you trade noise bandwidth against response time for the specific vibration profile or motion event you are measuring.

Supply and temperature envelope for industrial deployment

No special reflow profile beyond the standard lead-free JEDEC curve is required.

Active lifecycle and compliance documentation

No second-source cross-reference is officially published by Analog Devices for this order code.

Frequently asked questions

What is the difference between ADXL356BEZ-RL7 and ADXL356TEZ-EP?

The ADXL356TEZ-EP extends the operating temperature range to -55°C to 125°C and adds a ±40g range option (sensitivity 20 mV/g at ±40g). The ADXL356BEZ-RL7 covers -40°C to 125°C with ±10g and ±20g ranges. Both share the same 14-CLCC package and analog voltage output — the TEZ-EP is the enhanced-plastic (EP) variant for wider-temperature applications.

What is the axis configuration and output type of ADXL356BEZ-RL7?

It measures acceleration on three axes — X, Y, and Z — and outputs analog voltage signals on separate pins. The output is ratiometric to the supply voltage, so the full-scale span tracks the VDD rail.
