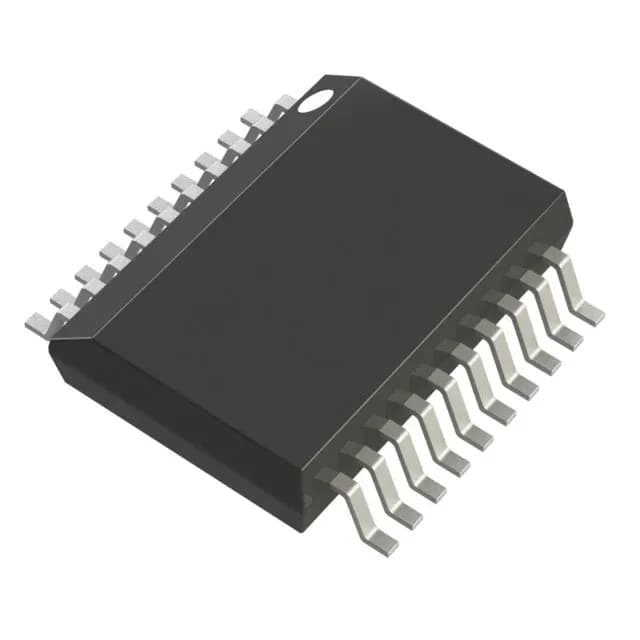

Analog Devices ADUM3151BRSZ — Digital Isolators

ADUM3151BRSZ SPI Digital Isolator, 3750 Vrms, 34 Mbps

MPNADUM3151BRSZ
End of Life

Analog Devices ADUM3151BRSZ, iCoupler® SPIsolator™, SPI digital isolator, 7 channels (5/2), 34 Mbps, 3750 Vrms, 3V–5.5V supply, -40°C to 125°C, 20-SSOP.

$8.37Ref. price · indicative, final on quote
Packaging20-SSOP (0.209", 5.30mm Width)
RoHSROHS3 Compliant
SeriesiCoupler®, SPIsolator™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ADUM3151BRSZ specifications
ParameterValue
TypeSPI
SeriesiCoupler®, SPIsolator™
Channel typeUnidirectional
MountingSurface Mount
Voltage3V ~ 5.5V
Voltage - isolation3750Vrms
Isolated powerNo
Operating temperature-40°C ~ 125°C
Pulse width distortion2ns
PackageTube
Data rate34Mbps
TechnologyMagnetic Coupling
Case20-SSOP (0.209\", 5.30mm Width)
Channels7
Inputs - side 1/Side 25/2
Rise (Fall time)2.5ns, 2.5ns
Propagation delay tpLH (tpHL)14ns, 14ns
Common mode transient immunity25kV/µs

Product details

Propagation delay and transient immunity

Propagation delay is 14 ns max in both directions, with pulse-width distortion held to 2 ns max. That keeps the SPI clock-to-data skew tight enough for 34 Mbps operation without needing to slow the bus. Rise and fall times are 2.5 ns typical, which is fast enough to avoid edge-rate problems on short PCB traces but may need series termination if the trace runs longer than a few inches.

No last-time-buy or end-of-life notice exists. The ADUM4150ARIZ-RL is a 6-channel sibling with 5000 Vrms isolation and 40 Mbps data rate, but with a 4/2 channel split.

The 3V to 5.5V supply range fits 3.3V or 5V SPI buses. The 7-channel count with a 5/2 input split distinguishes it from the 6-channel ADUM4150.

Frequently asked questions

Is ADUM3151BRSZ pin-compatible with ADUM3150?

The ADUM3151BRSZ and ADUM3150 share the same iCoupler® SPIsolator™ series and 20-SSOP package, but the channel count and input/output split differ. The ADUM3151 has 7 channels (5/2), while the ADUM3150 has a different channel configuration. Verify the pinout against your schematic before substituting.

What is the data rate of ADUM3151BRSZ?

The ADUM3151BRSZ supports a data rate of 34 Mbps, sufficient for most SPI applications including high-speed ADCs and DACs.

Is ADUM3151BRSZ compatible with 5V SPI?

Yes, the supply voltage range of 3V to 5.5V covers both 3.3V and 5V logic. The inputs and outputs are rated for the supply rail, so a 5V SPI master can drive the isolator directly.
