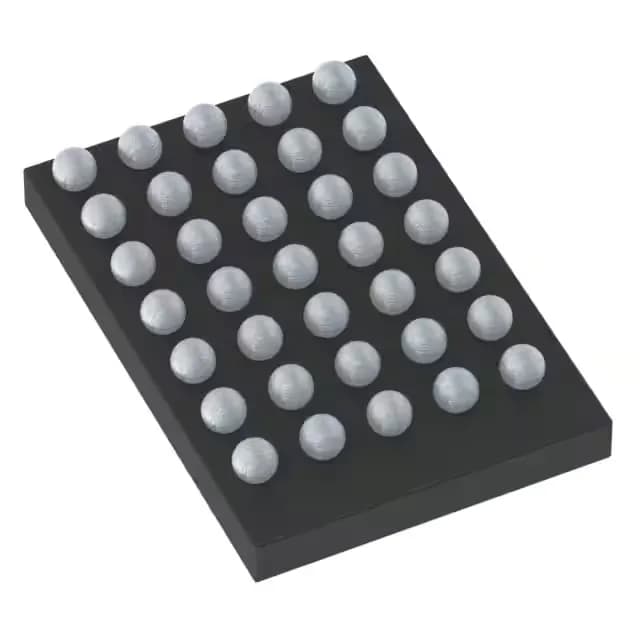

Analog Devices ADPD4000BCBZR7, Multi-Modal Optical AFE, 10 µA supply, I²C/SPI output, -40°C to 85°C, 35-WLCSP (3.11x2.14 mm), Surface Mount, ROHS3 Compliant, Active.
| Parameter | Value |
|---|---|
| Type | Front End |
| Input type | Analog, Digital |
| Output type | I²C, SPI |
| Mounting | Surface Mount |
| Current - supply | 10 µA |
| Operating temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 35-UFBGA, WLCSP |
The ADPD4000BCBZR7 is a multi-modal optical AFE accepting analog and digital inputs, outputting over I²C or SPI.
The 10 µA supply current is the baseline for the always-on sensing path.
Because the part is active and not subject to a PCN, lead times are generally stable, but the exact window depends on ADI's factory backlog.
The ADPD4000BCBZR7 is rated for -40°C to 85°C ambient operating temperature.
Yes, the ADPD4000BCBZR7 is ROHS3 Compliant, meeting the latest EU RoHS exemption-free standard.
