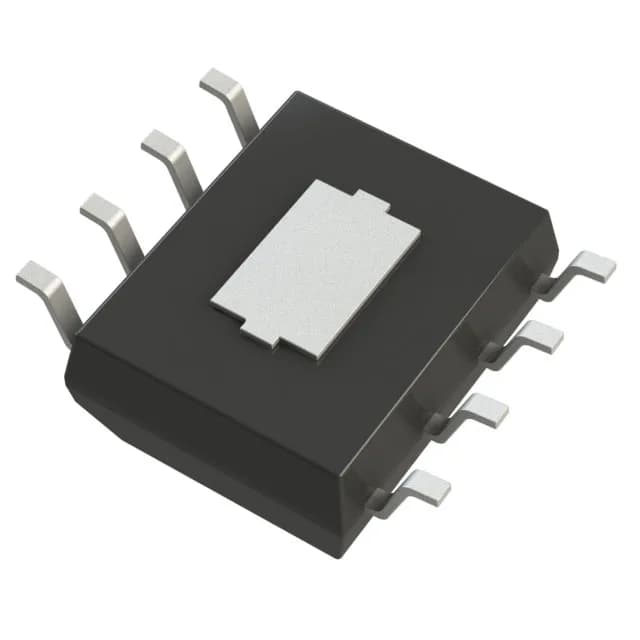

ADP3624ARDZ Low-Side Gate Driver, 4A Peak, 8-SOIC-EP

MPNADP3624ARDZ
End of Life

Analog Devices ADP3624ARDZ, low-side gate driver, 2 independent channels, N-channel MOSFET, 4A peak source/sink, 4.5V–18V supply, 10ns rise/fall, -40°C to 150°C, 8-SOIC-EP.

$3.0Ref. price · indicative, final on quote
ADP3624ARDZ datasheet
Packaging8-SOIC (0.154", 3.90mm Width) Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

ADP3624ARDZ Technical Specifications
ParameterValue
Gate typeN-Channel MOSFET
Input typeNon-Inverting
Channel typeIndependent
Mounting typeSurface Mount
Voltage4.5V ~ 18V
Logic voltage - VIL, VIH0.8V, 2V
Current - peak output (Source, sink)4A, 4A
Operating temperature-40°C ~ 150°C (TJ)
PackageTube
Case8-SOIC (0.154\", 3.90mm Width) Exposed Pad
Number of drivers2
Driven configurationLow-Side
Rise (Fall time)10ns, 10ns

Product details

What this gate driver does in a switching supply

The ADP3624ARDZ is a low-side gate driver from Analog Devices designed to drive N-channel MOSFETs in switching power converters, motor drives, and class-D audio amplifiers. It delivers 4A peak source and 4A peak sink current, with 10ns typical rise and fall times, which means it can charge and discharge the gate capacitance of a large MOSFET quickly enough to keep switching losses under control. The supply range spans 4.5V to 18V, so a 12V gate drive rail is right in the sweet spot.

Frequently asked questions

Can ADP3624ARDZ drive N-channel MOSFETs at 12V?

Yes. The supply voltage range is 4.5V to 18V, so a 12V gate drive rail is well within the operating window. The 4A peak source current can charge the gate capacitance of most medium-power MOSFETs in tens of nanoseconds.

What is the difference between ADP3624ARDZ and ADP3624ARZ?

The difference is in the package variant. The ADP3624ARDZ ships in tube packaging, while the ADP3624ARZ is typically supplied in tape-and-reel. Both share the same 8-SOIC-EP package and identical electrical specifications. The choice depends on your assembly line's feeder preference.
