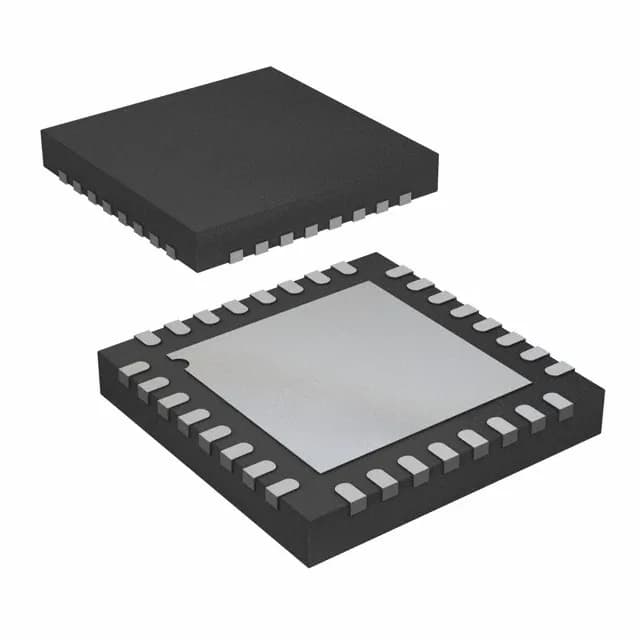

ADL5304ACPZ-R7 Logarithmic Converter, 32-LFCSP, Active

MPNADL5304ACPZ-R7
End of Life

Analog Devices ADL5304ACPZ-R7, Logarithmic Converter, Fiber Optics, Surface Mount, 32-WFQFN Exposed Pad CSP, 32-LFCSP (5x5), ROHS3 Compliant, Active.

$26.55Ref. price · indicative, final on quote
ADL5304ACPZ-R7 datasheet
Packaging32-WFQFN Exposed Pad, CSP
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

ADL5304ACPZ-R7 Technical Specifications
ParameterValue
TypeLogarithmic Converter
Mounting typeSurface Mount
PackageTape & Reel (TR); Cut Tape (CT)
ApplicationsFiber Optics
Case32-WFQFN Exposed Pad, CSP

Product details

Logarithmic converter for fiber-optic power measurement

This part is a direct fit for receiver-side RSSI monitoring, optical power-level detection, and loss-budget verification in fiber links. The 32-LFCSP (5x5) package with exposed pad provides a low-inductance thermal path for stable operation across the rated temperature range.

Package and footprint — 32-lead LFCSP with exposed pad

Housed in a 32-WFQFN exposed-pad CSP (package case) that Analog Devices designates as 32-LFCSP (5x5), the ADL5304ACPZ-R7 requires a surface-mount footprint with a central thermal pad.

Frequently asked questions

What is the difference between ADL5304ACPZ and ADL5304ACPZ-R7?

The base part number ADL5304ACPZ refers to the same logarithmic converter die and package. The -R7 suffix designates Tape & Reel packaging on a 7-inch reel, whereas the base part number without suffix typically ships in a different carrier (tube or tray). Electrically and functionally they are identical.

Can ADL5304ACPZ-R7 be used for RF power detection?

The ADL5304ACPZ-R7 is specified for fiber-optic applications, meaning its input stage is optimized for photodiode current rather than RF envelope detection. For RF power measurement, a dedicated log amp or detector with RF input matching would be a more appropriate choice.
