This part is typically used for hot-swap or voltage-level translation in mixed-voltage digital buses, where a low on-resistance switch isolates or connects signal paths without adding propagation delay.
Two independent 8-bit buses in one package
Each of the two independent circuits handles an 8-bit wide bus, giving you 16 total signal channels in a single 38-TSSOP. The 1:1 configuration means each switch connects one input to one output — no muxing or demuxing. For a board with separate data and address buses that both need isolation, this saves board area versus using two 8-bit switches.
No extended or military temp grade here, so keep it inside the enclosure.
ADI lists the ADG3247BRUZ-REEL as Active.

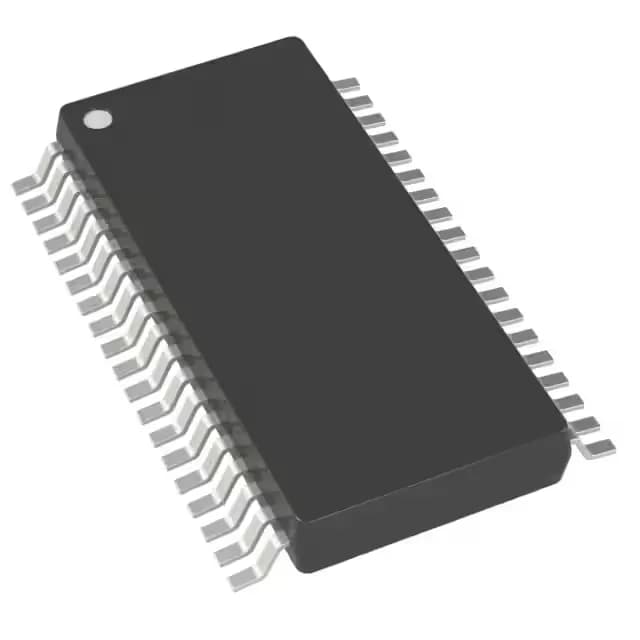

Package and footprint: 38-TSSOP
The 38-TSSOP body is 4.40 mm wide with a 0.65 mm pitch — a standard fine-pitch footprint that routes easily on two-layer boards. Cut Tape (CT) is also available for prototype or low-volume builds. Surface-mount only, so plan for reflow soldering.
