ADCMP605BCPZ-WP - Analog Devices
MPNADCMP605BCPZ-WP
End of Life

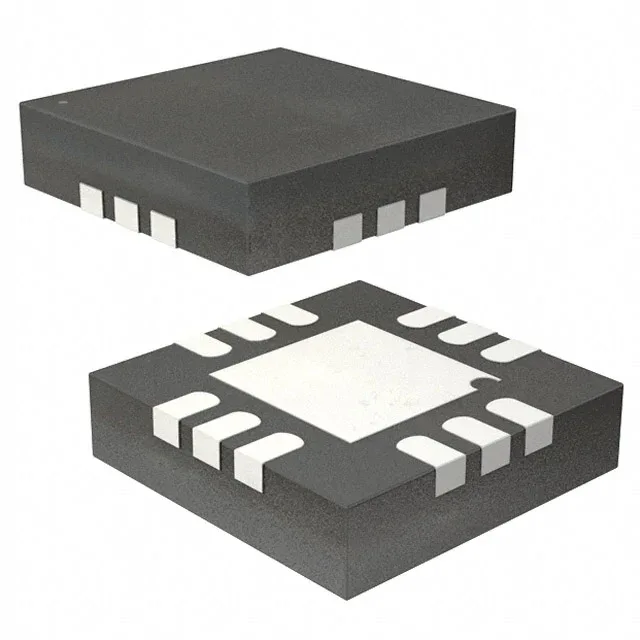

IC COMP LVDS 1CHAN 12-LFCSP
$8.22Ref. price · indicative, final on quote
Packaging12-WFQFN Exposed Pad, CSP
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | with Latch |
| Output type | Complementary, LVDS, Rail-to-Rail |
| Mounting | Surface Mount |
| Voltage - input offset | 5mV @ 3V |
| Voltage - supply, single (Dual (±)) | 2.5V ~ 5.5V |
| Output current | 50mA |
| Current - quiescent | 3mA |
| Current - input bias | 5µA @ 3V |
| Operating temperature | -40°C ~ 125°C |
| Package | Tray |
| Hysteresis | 100µV |
| Case | 12-WFQFN Exposed Pad, CSP |
| CMRR, PSRR | 50dB CMRR, 50dB PSRR |
| Number of elements | 1 |
| Propagation delay | 3ns |
