Analog Devices AD8556ACPZ-R2 — Memory (DRAM / SRAM / Flash / EEPROM)
Analog Devices

AD8556ACPZ-R2 Zero-Drift Op-Amp, 2 µV Offset, 140°C

MPNAD8556ACPZ-R2
End of Life

ADI DigiTrim® series, AD8556ACPZ-R2, zero-drift amplifier, 1 circuit, 2 MHz GBW, 1.2 V/µs slew rate, 2 µV input offset, 4.5 V to 5.5 V supply, -40°C to 140°C, 16-LFCSP-VQ (4x4) exposed pad, surface mount.

$14.76Ref. price · indicative, final on quote
AD8556ACPZ-R2 datasheet
Packaging16-VQFN Exposed Pad, CSP
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

AD8556ACPZ-R2 Technical Specifications
ParameterValue
SeriesDigiTrim®
Mounting typeSurface Mount
Amplifier typeZero-Drift
Voltage - input offset2 µV
Voltage - supply span5.5 V
Current - supply2mA
Current - input bias49 nA
Current - output (Channel)10 mA
Operating temperature-40°C ~ 140°C
Gain bandwidth product2 MHz
PackageTape & Reel (TR); Cut Tape (CT)
Slew rate1.2V/µs
Case16-VQFN Exposed Pad, CSP
Number of circuits1

Product details

Zero-drift precision amp rated to 140°C

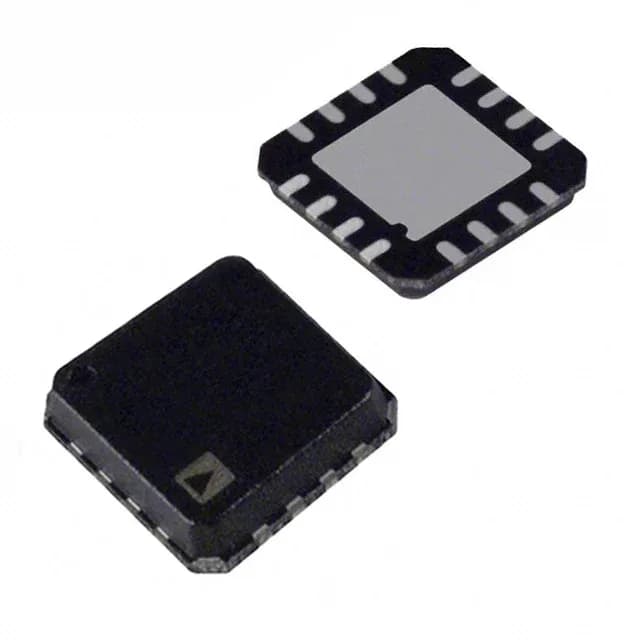

The AD8556ACPZ-R2 is a single-channel zero-drift amplifier from ADI's DigiTrim® series, packaged in a 16-lead LFCSP-VQ (4x4 mm) with exposed pad. Its chopper-stabilized topology delivers a 2 µV typical input offset voltage and 49 nA input bias current.

140°C operating range — where it earns its keep

The -40°C to 140°C temperature grade is the standout differentiator. Most zero-drift amplifiers in this class — including the AD8557 family — are rated to 125°C maximum.

Supply and output — single 5 V rail, 10 mA drive

Supply range is 4.5 V to 5.5 V — no lower, no higher. The output can source or sink 10 mA per channel.

Frequently asked questions

Is AD8556ACPZ-R2 equivalent to AD8555?

No direct equivalence is documented. The AD8555 is a different DigiTrim® variant with programmable gain; the AD8556 is a fixed-gain zero-drift amplifier. Verify pinout and function before substituting.
