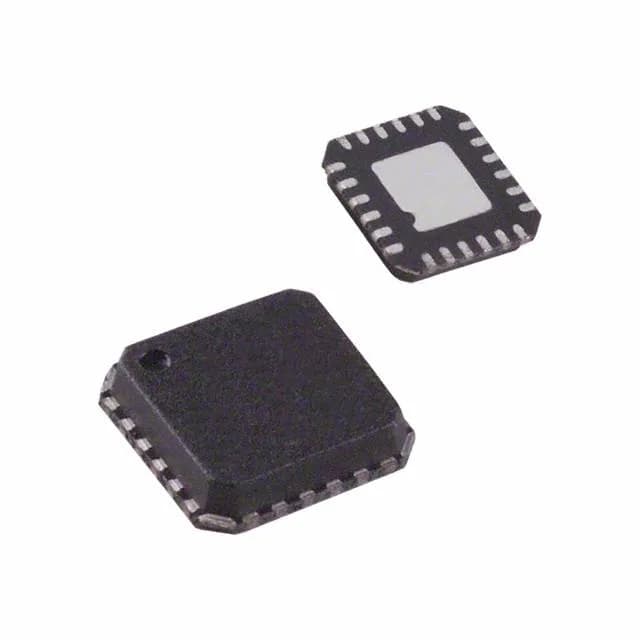

Analog Devices AD8375ACPZ-R7 — Logic ICs
Analog Devices

AD8375ACPZ-R7 Variable Gain Amplifier, 630 MHz, 5000 V/µs

MPNAD8375ACPZ-R7
End of Life

Analog Devices AD8375ACPZ-R7, Variable Gain Amplifier, 1 Circuit, Differential Output, 630 MHz -3dB Bandwidth, 5000V/µs Slew Rate, 4.5V to 5.5V Supply, 24-LFCSP-VQ (4x4) Package, -40°C to 85°C.

$13.67Ref. price · indicative, final on quote
AD8375ACPZ-R7 datasheet
Packaging24-VFQFN Exposed Pad, CSP
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

AD8375ACPZ-R7 Technical Specifications
ParameterValue
Output typeDifferential
Mounting typeSurface Mount
Amplifier typeVariable Gain
Voltage - supply span5.5 V
Current - supply125mA
Current - input bias900 nA
Operating temperature-40°C ~ 85°C
-3db bandwidth630 MHz
PackageTape & Reel (TR); Cut Tape (CT)
Slew rate5000V/µs
Case24-VFQFN Exposed Pad, CSP
Number of circuits1

Product details

Variable gain amplifier for IF and high-speed signal chains

The AD8375ACPZ-R7 is a single-channel variable gain amplifier from Analog Devices, designed for applications requiring wideband gain control with high slew rate. It delivers a 630 MHz -3 dB bandwidth and a 5000 V/µs slew rate, making it suited for IF sampling receivers, radar processing, and communications infrastructure where fast settling and low distortion are needed. The differential output simplifies interface to ADCs or differential signal paths.

Frequently asked questions

What is the difference between AD8375ACPZ-R7 and AD8330ACPZ-R7?

The AD8330ACPZ-R7 is a variable gain amplifier with a lower 150 MHz bandwidth and 1500 V/µs slew rate, compared to the AD8375ACPZ-R7's 630 MHz and 5000 V/µs. Both are single-channel devices in similar LFCSP packages, but the AD8375ACPZ-R7 targets higher-speed IF applications.
