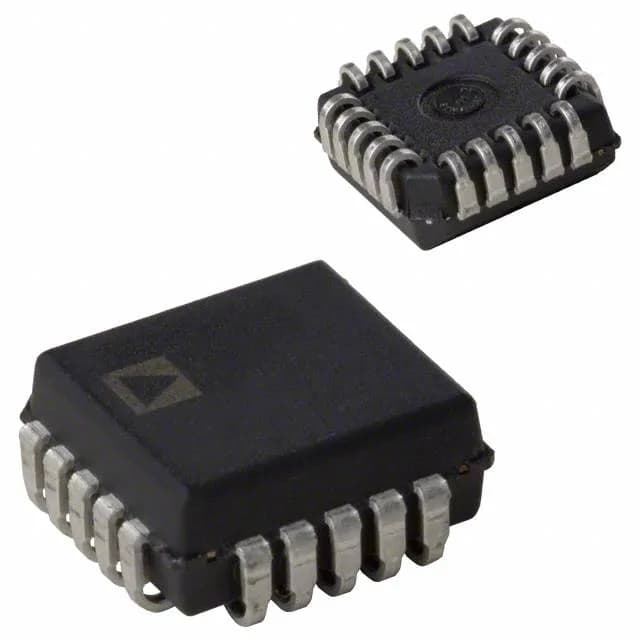

Analog Devices AD2S99APZ — Clock & Timing ICs
Analog Devices

AD2S99APZ Sinusoidal Oscillator IC – 2 kHz to 20 kHz, Active

MPNAD2S99APZ
End of Life

Analog Devices AD2S99APZ, Clock & Timing ICs, Oscillator Sinusoidal, programmable 2 kHz to 20 kHz, 20-LCC (J-Lead), Surface Mount, Tube, ±4.75V to 5.25V supply, 8 mA supply current, -40°C to 85°C.

$33.64Ref. price · indicative, final on quote
AD2S99APZ datasheet
Packaging20-LCC (J-Lead)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

AD2S99APZ Technical Specifications
ParameterValue
TypeOscillator, Sinusoidal
Mounting typeSurface Mount
Voltage±4.75V ~ 5.25V
Current - supply8 mA
Frequency2kHz ~ 20kHz
Operating temperature-40°C ~ 85°C
PackageTube
Case20-LCC (J-Lead)

Product details

Programmable sinusoidal oscillator for resolver excitation

The AD2S99APZ is a programmable sinusoidal oscillator from Analog Devices, designed to generate a clean sine-wave carrier for resolver and synchro excitation in motion-control systems. Its frequency is adjustable from 2 kHz to 20 kHz, covering the standard excitation range for most industrial resolvers. Operating from a ±4.75V to 5.25V supply and drawing 8 mA typical, it integrates directly onto a mixed-signal board without a separate power stage.

20-PLCC package and surface-mount assembly

Housed in a 20-lead PLCC with J-leads, the AD2S99APZ offers a compact 9x9 mm footprint that is inspectable after reflow — a practical advantage over BGA for prototype rework or low-volume production.

Active lifecycle — no end-of-life risk

ROHS3 compliant, it is qualified for new designs and ongoing production.

Frequently asked questions

What is the frequency range of AD2S99APZ?

The AD2S99APZ is programmable from 2 kHz to 20 kHz, covering the standard resolver excitation frequencies used in industrial servo drives and CNC machinery.
