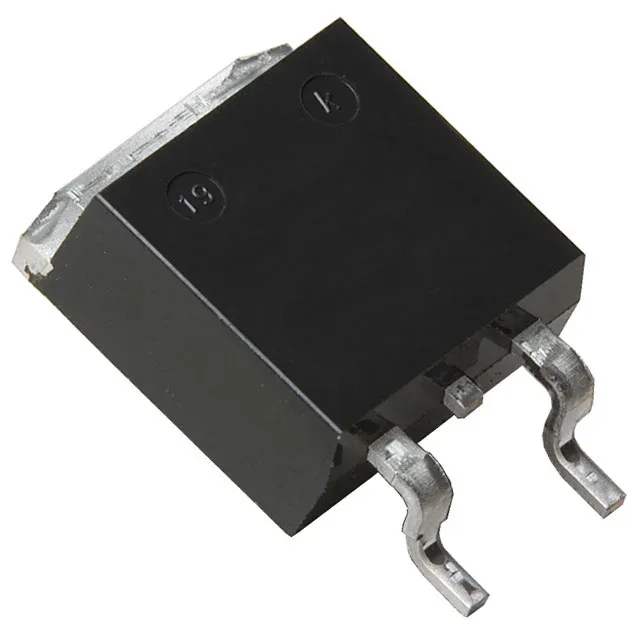

WNS40H100CBJ
WeEn Semiconductors
DIODE ARRAY SCHOT 100V 20A D2PAK
[IN STOCK] In Stock: 79 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Diode type | Schottky |
| Mounting | Surface Mount |
| Voltage - DC reverse (Vr) | 100 V |
| Voltage - forward (Vf) (Max) @ if | 710 mV @ 20 A |
| Current - reverse leakage @ vr | 50 µA @ 100 V |
| Current - average rectified (Io) (per diode) | 20A |
| Operating temperature - junction | 150°C (Max) |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Diode configuration | 1 Pair Common Cathode |
WNS40H100CBJ
[ALLOC] verified
