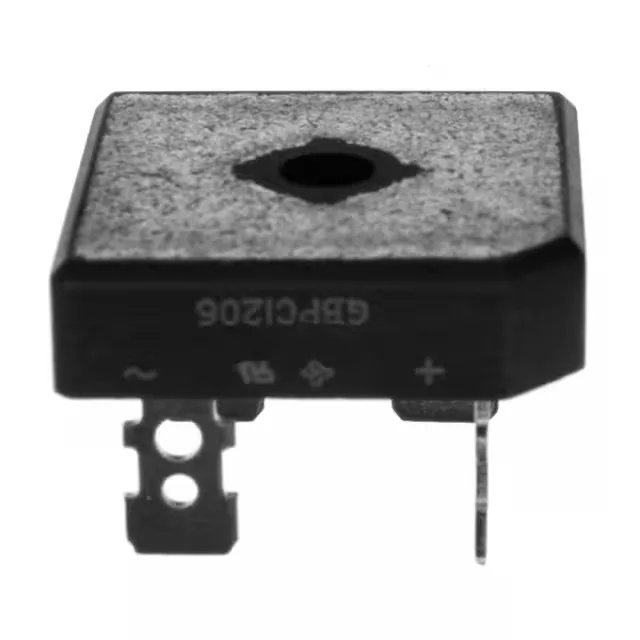

GBPC1206-E4/51
Vishay
QC TerminalBoxStandard
Ref. price$5.3
Lead time on requestGet quote
Vishay GBPC Series
4 variants · Vishay
About the Vishay GBPC Series
ICBOMS is a China IC distributor and semiconductor supplier — an independent, Shenzhen-based overseas procurement agent for Vishay GBPC Series components — sourcing Vishay GBPC Series parts new and original only, across the authorized and vetted independent channel, with every lot authenticity-screened before shipment. The Vishay GBPC Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common diode type of Single Phase, operating temperature of -55°C ~ 150°C (TJ) and technology of Standard. Variants differ by case, current - average rectified and current - reverse leakage @ vr, so you can match the exact case your application requires using the selection guide below. All listed Vishay GBPC Series part numbers are active and orderable.
Select a variant by
- Case
- 4-Square, GBPC · 4-Square, GBPC-W
- Current - average rectified
- 12 A · 15 A · 35 A
- Current - reverse leakage @ vr
- 5 µA @ 50 V · 5 µA @ 100 V · 5 µA @ 600 V
- Mounting
- QC Terminal · Through Hole
- Package
- Box · Bulk
- Voltage - forward (Vf) (Max) @ if
- 1.1 V @ 6 A · 1.1 V @ 7.5 A · 1.1 V @ 17.5 A
- Voltage - peak reverse
- 50 V · 100 V · 600 V
Shared specifications
- Diode type
- Single Phase
- Operating temperature
- -55°C ~ 150°C (TJ)
- Technology
- Standard
Variant comparison

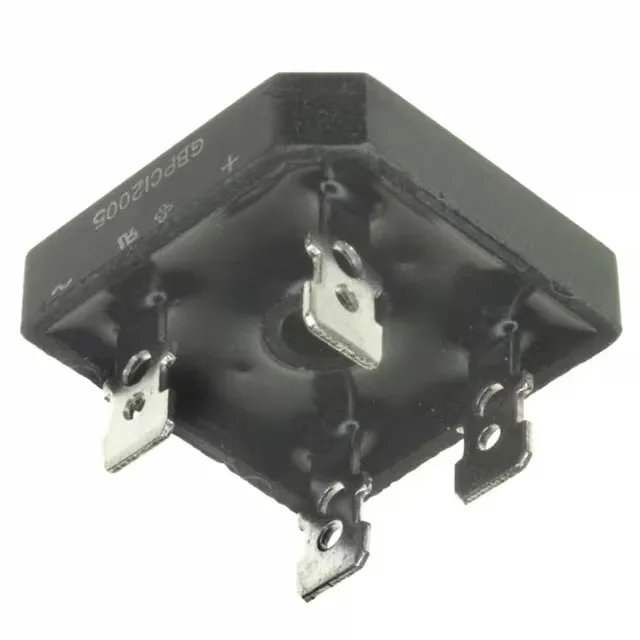

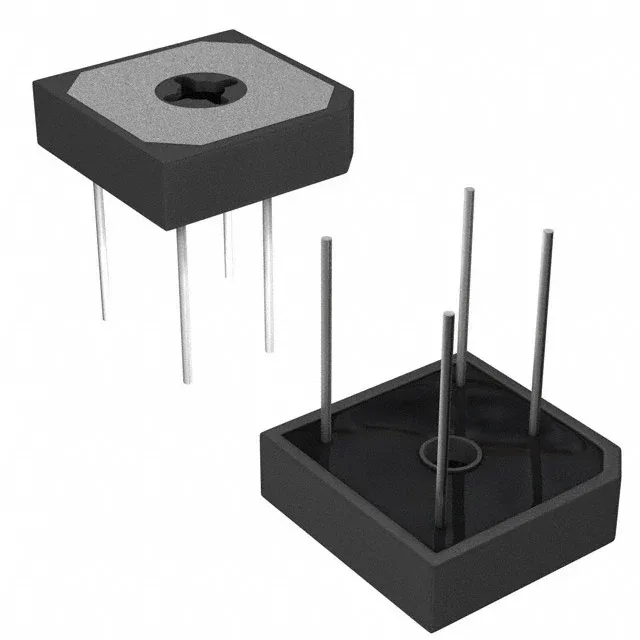

| Parameter | GBPC12005-E4/51 | GBPC1206-E4/51 | GBPC3506W-E4/51 | GBPC1501-E4/51 |
|---|---|---|---|---|
| Case | 4-Square, GBPC-W | 4-Square, GBPC | 4-Square, GBPC-W | 4-Square, GBPC |
| Current - average rectified | 12 A | 12 A | 35 A | 15 A |
| Current - reverse leakage @ vr | 5 µA @ 50 V | 5 µA @ 600 V | 5 µA @ 600 V | 5 µA @ 100 V |
| Mounting | Through Hole | QC Terminal | Through Hole | QC Terminal |
| Package | Box | Box | Box | Bulk |
| Voltage - forward (Vf) (Max) @ if | 1.1 V @ 6 A | 1.1 V @ 6 A | 1.1 V @ 17.5 A | 1.1 V @ 7.5 A |
| Voltage - peak reverse | 50 V | 600 V | 600 V | 100 V |
Request a quote on any Vishay GBPC Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
