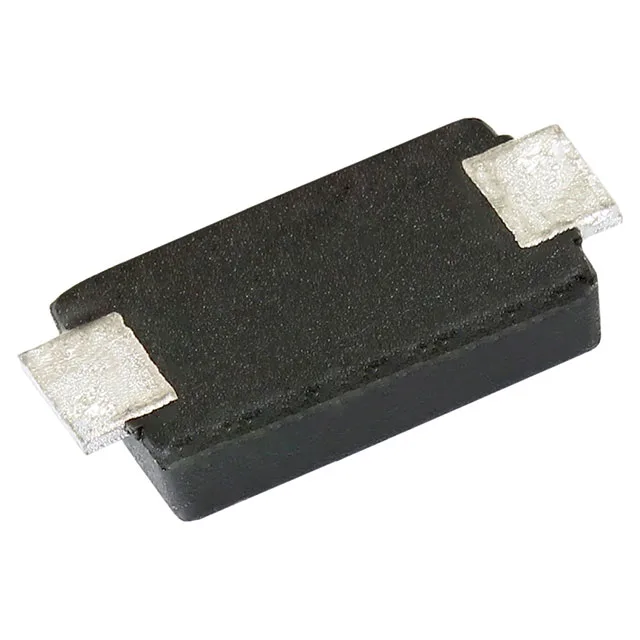

Vishay VSSAF3M10HM3/H
MPNVSSAF3M10HM3/H
End of Life
DIODE SCHOTTKY 100V 3A DO221AC
$0.49Ref. price · indicative, final on quote
PackagingDO-221AC, SMA Flat Leads
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q101, TMBS®, SlimSMA™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q101, TMBS®, SlimSMA™ |
| Diode type | Schottky |
| Mounting | Surface Mount |
| Voltage - DC reverse (Vr) | 100 V |
| Voltage - forward (Vf) (Max) @ if | 720 mV @ 3 A |
| Current - reverse leakage @ vr | 200 µA @ 100 V |
| Current - average rectified | 3A |
| Operating temperature - junction | -40°C ~ 175°C |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | DO-221AC, SMA Flat Leads |
| Capacitance @ vr, | 364pF @ 4V, 1MHz |
