VS-E5PX3012L-N3
MPNVS-E5PX3012L-N3
End of Life

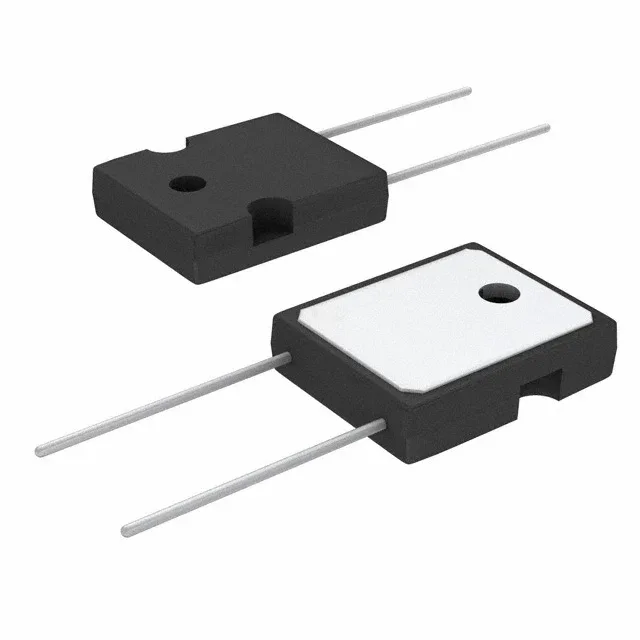

DIODE GEN PURP 1.2KV 30A TO247AD
$3.68Ref. price · indicative, final on quote
PackagingTO-247-2
RoHSROHS3 Compliant
SeriesFRED Pt®
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FRED Pt® |
| Diode type | Standard |
| Mounting | Through Hole |
| Voltage - DC reverse (Vr) | 1200 V |
| Voltage - forward (Vf) (Max) @ if | 3.15 V @ 30 A |
| Current - reverse leakage @ vr | 50 µA @ 1200 V |
| Current - average rectified | 30A |
| Operating temperature - junction | -55°C ~ 175°C |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Package | Tube |
| Case | TO-247-2 |
| Reverse recovery time | 100 ns |
