What this gate-drive optocoupler does on your board

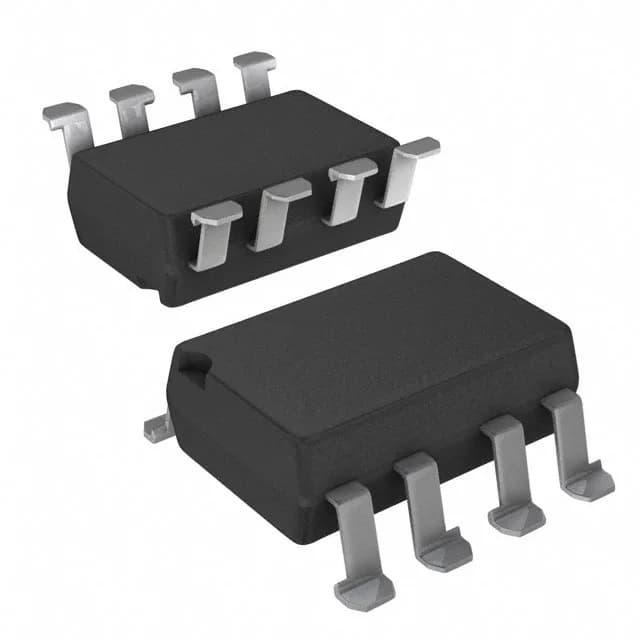

The Vishay VOD3120AB-T is a single-channel gate-drive optocoupler built for driving IGBTs and power MOSFETs in motor drives, inverters, and industrial power supplies. Its 2.5A peak output current directly drives the gate charge of medium-power switching devices without an external buffer stage. The optical coupling provides 5300Vrms of reinforced isolation between the controller-side logic and the high-voltage power stage, which is the primary spec that determines whether this part fits your isolation barrier requirements.
2.5A peak output — sizing the gate drive
The 2.5A peak source and sink capability means this part can switch the gate of a typical IGBT module in the 50 A to 200 A range within the 35 ns typical rise and fall times. If your power device has a higher total gate charge, you will need to check the switching frequency and total drive current budget — the 500 ns maximum propagation delay keeps the switching dead-time predictable for most inverter designs.
35 kV/µs CMTI — why it matters for motor drives
Common-mode transient immunity of 35 kV/µs minimum is the spec that separates a gate-drive optocoupler that works in a noisy inverter environment from one that glitches. In a motor-drive application, the high-side switch sees fast voltage swings at the switching node; if the optocoupler cannot reject those transients, the output can falsely trigger, causing shoot-through. This part's CMTI rating is sized for industrial drives running at moderate switching frequencies.
Temperature range and approvals — where it goes
The CQC, cUL, UL, and VDE approvals mean it carries the safety certifications required for equipment sold into North America, Europe, and China — no need to re-certify the isolation barrier yourself.
