TZMC4V7-GS18 - Vishay
MPNTZMC4V7-GS18
End of Life

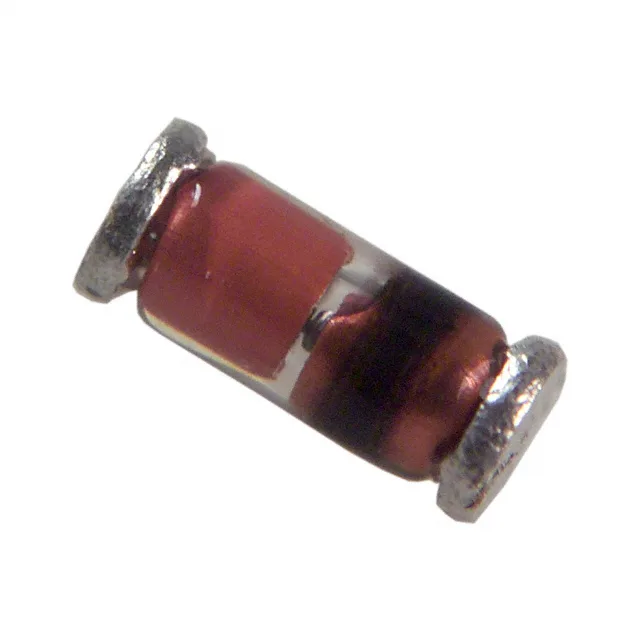

DIODE ZENER 4.7V 500MW SOD80
$0.22Ref. price · indicative, final on quote
PackagingDO-213AC, MINI-MELF, SOD-80
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q101, TZM
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q101, TZM |
| Mounting | Surface Mount |
| Voltage - zener (Nom) | 4.7 V |
| Voltage - forward (Vf) (Max) @ if | 1.5 V @ 200 mA |
| Current - reverse leakage @ vr | 500 nA @ 1 V |
| Power - max | 500 mW |
| Operating temperature | 175°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Tolerance | ±5% |
| Case | DO-213AC, MINI-MELF, SOD-80 |
| Impedance (Max) | 80 Ohms |
