Vishay SQJQ906EL-T1_GE3
MPNSQJQ906EL-T1_GE3
End of Life

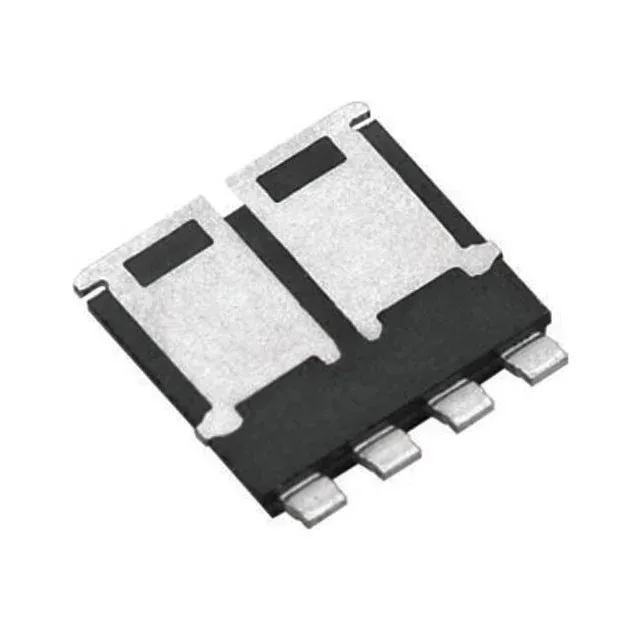

MOSFET 2N-CH 40V 160A PPAK8X8
$2.56Ref. price · indicative, final on quote
PackagingPowerPAK® 8 x 8 Dual
RoHSROHS3 Compliant
SeriesTrenchFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® |
| Mounting | Surface Mount |
| Drain to source voltage | 40V |
| Current - continuous drain (Id) @ 25°C | 160A (Tc) |
| Power - max | 187W |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| Qualification | AEC-Q101 |
| Case | PowerPAK® 8 x 8 Dual |
| Vgs(th) (Max) @ id | 2.5V @ 250µA |
| Rds on (Max) @ id, vgs | 4.3mOhm @ 5A, 10V |
| Gate charge (Qg) (Max) @ vgs | 45nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 3238pF @ 20V |
