Vishay SQJ951EP-T1_BE3
MPNSQJ951EP-T1_BE3
End of Life
MOSFET 2P-CH 30V 30A PPAK SO8
$1.55Ref. price · indicative, final on quote

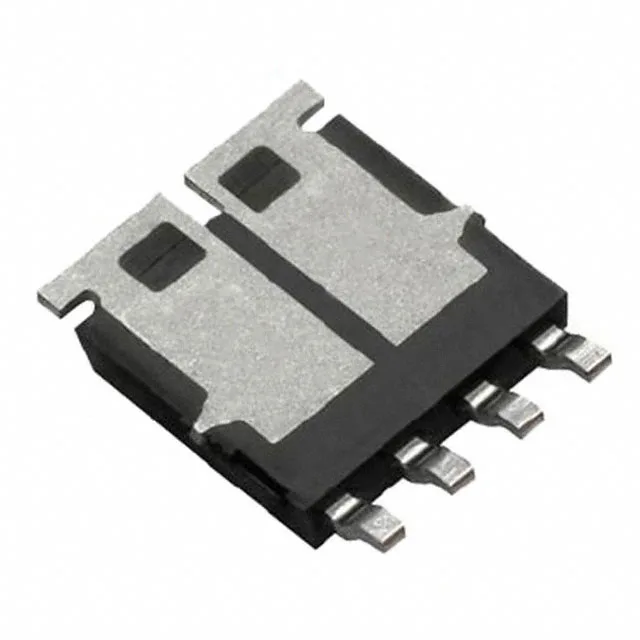

PackagingPowerPAK® SO-8 Dual
RoHSROHS3 Compliant
SeriesTrenchFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® |
| Mounting | Surface Mount |
| Drain to source voltage | 30V |
| Current - continuous drain (Id) @ 25°C | 30A (Tc) |
| Power - max | 56W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| Qualification | AEC-Q101 |
| Case | PowerPAK® SO-8 Dual |
| Vgs(th) (Max) @ id | 2.5V @ 250µA |
| Rds on (Max) @ id, vgs | 17mOhm @ 7.5A, 10V |
| Gate charge (Qg) (Max) @ vgs | 50nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 1680pF @ 10V |
