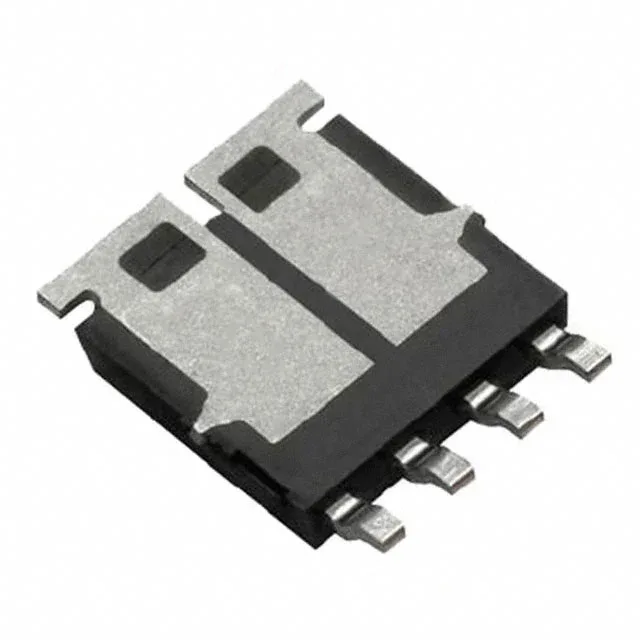

SQJ560EP-T1_GE3 - Vishay
MPNSQJ560EP-T1_GE3
End of Life
MOSFET N/P-CH 60V 30A PPAK SO8
$1.43Ref. price · indicative, final on quote
PackagingPowerPAK® SO-8 Dual
RoHSROHS3 Compliant
SeriesTrenchFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® |
| Mounting | Surface Mount |
| Drain to source voltage | 60V |
| Current - continuous drain (Id) @ 25°C | 30A (Tc), 18A (Tc) |
| Power - max | 34W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| Qualification | AEC-Q101 |
| Case | PowerPAK® SO-8 Dual |
| Vgs(th) (Max) @ id | 2.5V @ 250µA |
| Rds on (Max) @ id, vgs | 12mOhm @ 10A, 10V, 52.6mOhm @ 10A, 10V |
| Gate charge (Qg) (Max) @ vgs | 30nC @ 10V, 45nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 1650pF @ 25V |
