Vishay SQJ412EP-T1_GE3
MPNSQJ412EP-T1_GE3
End of Life
MOSFET N-CH 40V 32A PPAK SO-8
$2.48Ref. price · indicative, final on quote

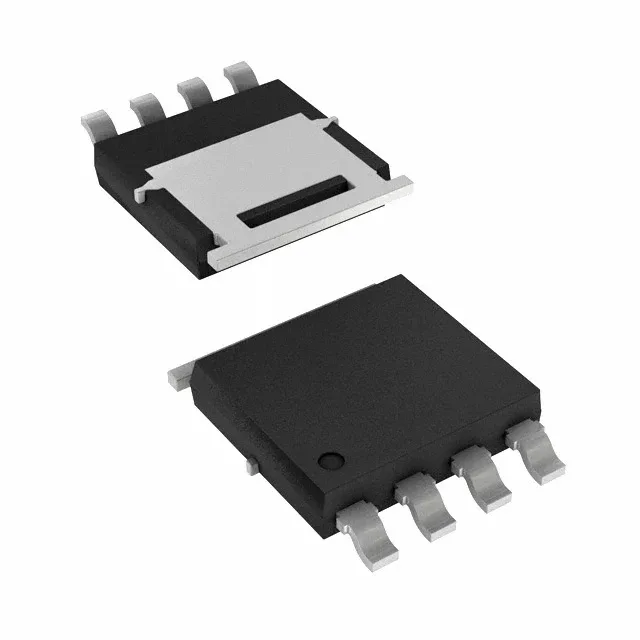

PackagingPowerPAK® SO-8
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q101, TrenchFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q101, TrenchFET® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 40 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 32A (Tc) |
| Power dissipation | 83W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | PowerPAK® SO-8 |
| Vgs(th) (Max) @ id | 2.5V @ 250µA |
| Rds on (Max) @ id, vgs | 4.1mOhm @ 10.3A, 10V |
| Gate charge (Qg) (Max) @ vgs | 120 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 5950 pF @ 20 V |
