Vishay SISS54DN-T1-GE3
MPNSISS54DN-T1-GE3
End of Life
N-CHANNEL 30-V (D-S) MOSFET POWE
$1.6Ref. price · indicative, final on quote

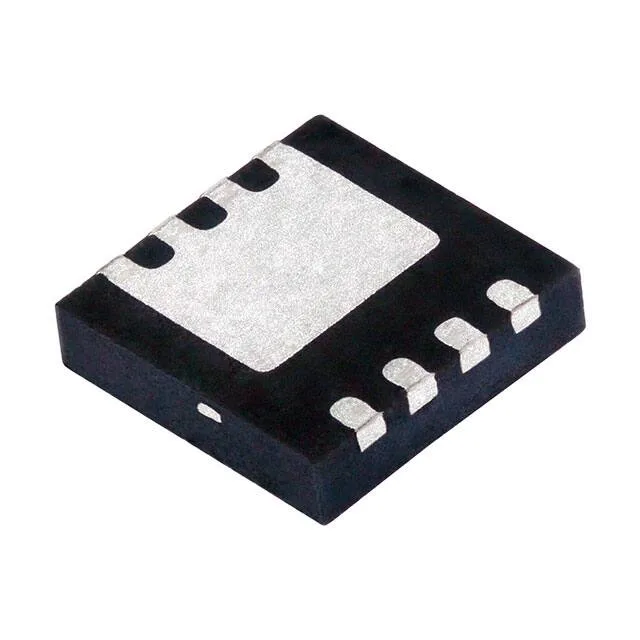

PackagingPowerPAK® 1212-8S
RoHSROHS3 Compliant
SeriesTrenchFET® Gen V
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® Gen V |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 51.1A (Ta), 185.6A (Tc) |
| Power dissipation | 5W (Ta), 65.7W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | +16V, -12V |
| Technology | MOSFET (Metal Oxide) |
| Case | PowerPAK® 1212-8S |
| Vgs(th) (Max) @ id | 2.2V @ 250µA |
| Rds on (Max) @ id, vgs | 1.06mOhm @ 20A, 10V |
| Gate charge (Qg) (Max) @ vgs | 72 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 3450 pF @ 15 V |
