SISA35DN-T1-GE3
Vishay · TrenchFET® Gen III Series
MOSFET P-CH 30V 10A/16A PPAK
[IN STOCK] In Stock: 1 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | TrenchFET® Gen III |
| FET type | P-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 10A (Ta), 16A (Tc) |
| Power dissipation | 3.2W (Ta), 24W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |

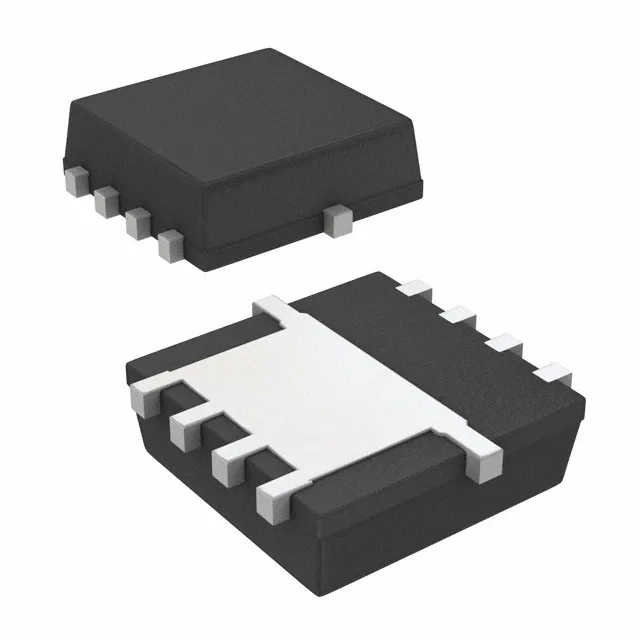

| Case | PowerPAK® 1212-8 |
| Vgs(th) (Max) @ id | 2.2V @ 250µA |
| Rds on (Max) @ id, vgs | 19mOhm @ 9A, 10V |
| Gate charge (Qg) (Max) @ vgs | 42 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1500 pF @ 15 V |
