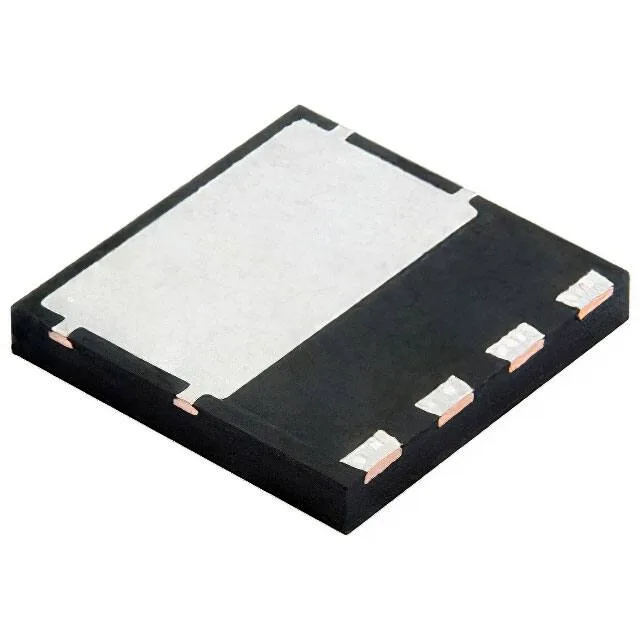

Vishay SIHH080N60E-T1-GE3
MPNSIHH080N60E-T1-GE3
End of Life
E SERIES POWER MOSFET POWERPAK 8
$4.93Ref. price · indicative, final on quote
Packaging8-PowerTDFN
RoHSROHS3 Compliant
SeriesE
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | E |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 600 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 32A (Tc) |
| Power dissipation | 184W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 5V @ 250µA |
| Rds on (Max) @ id, vgs | 80mOhm @ 17A, 10V |
| Gate charge (Qg) (Max) @ vgs | 63 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 2557 pF @ 100 V |
