Vishay SIHFL210TR-GE3
MPNSIHFL210TR-GE3
End of Life
MOSFET N-CHANNEL 200V
$0.68Ref. price · indicative, final on quote

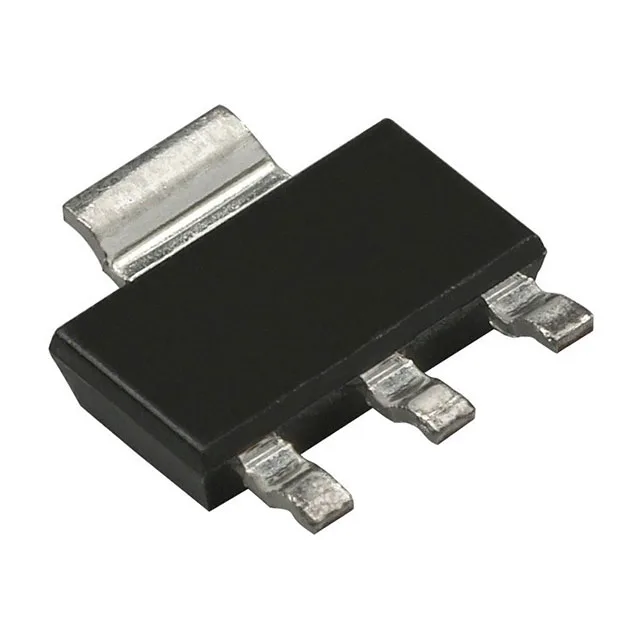

PackagingTO-261-4, TO-261AA
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 200 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 960mA (Tc) |
| Power dissipation | 2W (Ta), 3.1W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-261-4, TO-261AA |
| Vgs(th) (Max) @ id | 4V @ 250µA |
| Rds on (Max) @ id, vgs | 1.5Ohm @ 580mA, 10V |
| Gate charge (Qg) (Max) @ vgs | 8.2 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 140 pF @ 25 V |
