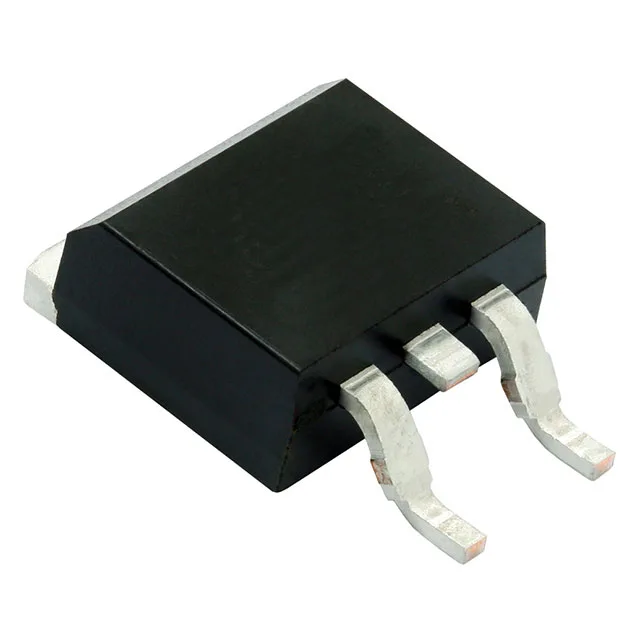

Vishay SIHB24N80AE-GE3
MPNSIHB24N80AE-GE3
End of Life
MOSFET N-CH 800V 21A D2PAK
$3.42Ref. price · indicative, final on quote
PackagingTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 800 V |
| Current - continuous drain (Id) @ 25°C | 21A (Tc) |
| Power dissipation | 208W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Vgs | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Vgs(th) (Max) @ id | 4V @ 250µA |
| Rds on (Max) @ id, vgs | 184mOhm @ 10A, 10V |
| Gate charge (Qg) (Max) @ vgs | 89 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1836 pF @ 100 V |
