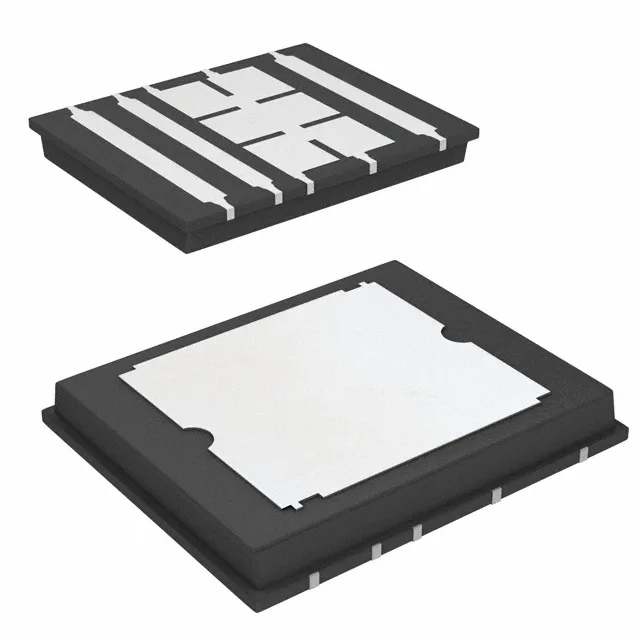

Vishay SIE874DF-T1-GE3
MPNSIE874DF-T1-GE3
End of Life
MOSFET N-CH 20V 60A 10POLARPAK
$2.46Ref. price · indicative, final on quote
Packaging10-PolarPAK® (L)
RoHSROHS3 Compliant
SeriesTrenchFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 20 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 60A (Tc) |
| Power dissipation | 5.2W (Ta), 125W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 10-PolarPAK® (L) |
| Vgs(th) (Max) @ id | 2.2V @ 250µA |
| Rds on (Max) @ id, vgs | 1.17mOhm @ 20A, 10V |
| Gate charge (Qg) (Max) @ vgs | 145 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 6200 pF @ 10 V |
