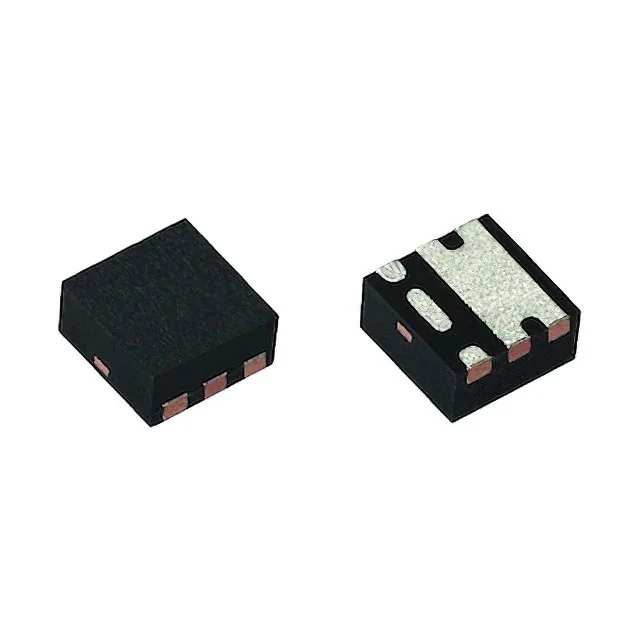

Vishay SIB4316EDK-T1-GE3
MPNSIB4316EDK-T1-GE3
End of Life
N-CHANNEL 30-V (D-S) MOSFET POWE
$0.42Ref. price · indicative, final on quote
PackagingPowerPAK® SC-75-6
RoHSROHS3 Compliant
SeriesTrenchFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 2.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 4.5A (Ta), 6A (Tc) |
| Power dissipation | 1.9W (Ta), 10W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Case | PowerPAK® SC-75-6 |
| Vgs(th) (Max) @ id | 1.4V @ 250µA |
| Rds on (Max) @ id, vgs | 57mOhm @ 4A, 10V |
| Gate charge (Qg) (Max) @ vgs | 12 nC @ 10 V |
