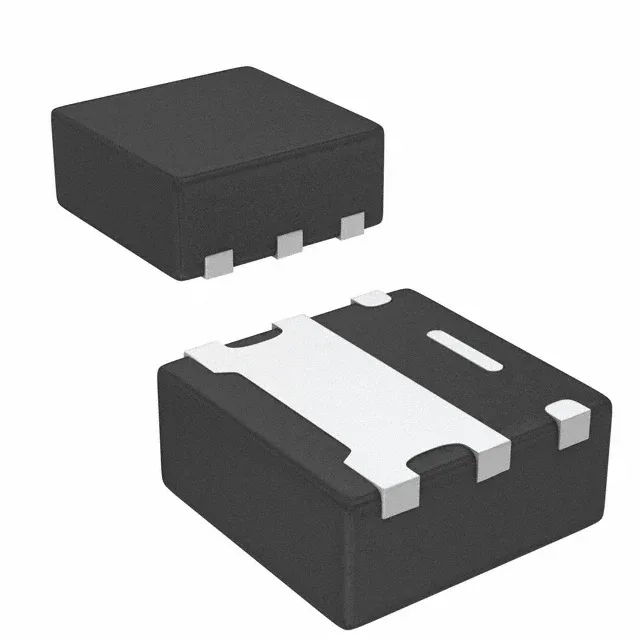

SIB406EDK-T1-GE3
MPNSIB406EDK-T1-GE3
End of Life
MOSFET N-CH 20V 6A PPAK SC75-6
$0.59Ref. price · indicative, final on quote
PackagingPowerPAK® SC-75-6
RoHSROHS3 Compliant
SeriesTrenchFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 20 V |
| Drive voltage (Max rds on, min rds on) | 2.5V, 4.5V |
| Current - continuous drain (Id) @ 25°C | 6A (Tc) |
| Power dissipation | 1.95W (Ta), 10W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Case | PowerPAK® SC-75-6 |
| Vgs(th) (Max) @ id | 1.4V @ 250µA |
| Rds on (Max) @ id, vgs | 46mOhm @ 3.9A, 4.5V |
| Gate charge (Qg) (Max) @ vgs | 12 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 350 pF @ 10 V |
