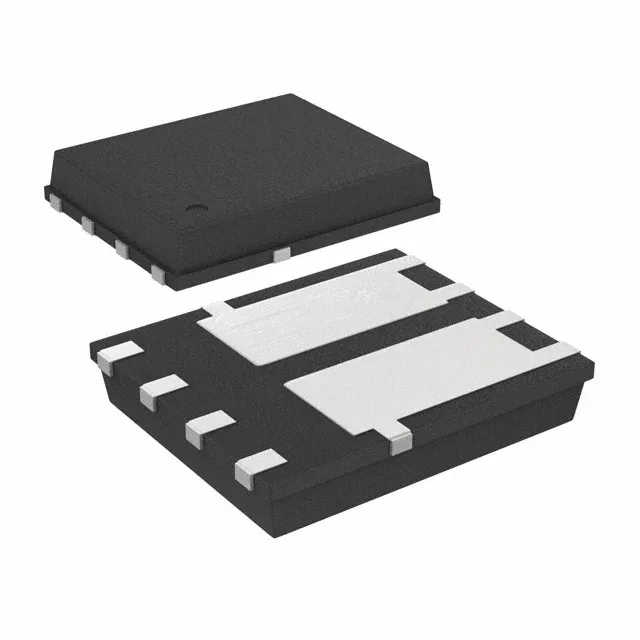

SI7997DP-T1-GE3
Vishay · TrenchFET® Series
MOSFET 2P-CH 30V 60A PPAK SO-8
[IN STOCK] In Stock: 459 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | TrenchFET® |
| FET type | 2 P-Channel (Dual) |
| Mounting | Surface Mount |
| Drain to source voltage | 30V |
| Current - continuous drain (Id) @ 25°C | 60A |
| Power - max | 46W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| FET feature | Standard |
| Case | PowerPAK® SO-8 Dual |
| Vgs(th) (Max) @ id | 2.2V @ 250µA |
| Rds on (Max) @ id, vgs | 5.5mOhm @ 20A, 10V |
| Gate charge (Qg) (Max) @ vgs | 160nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 6200pF @ 15V |
