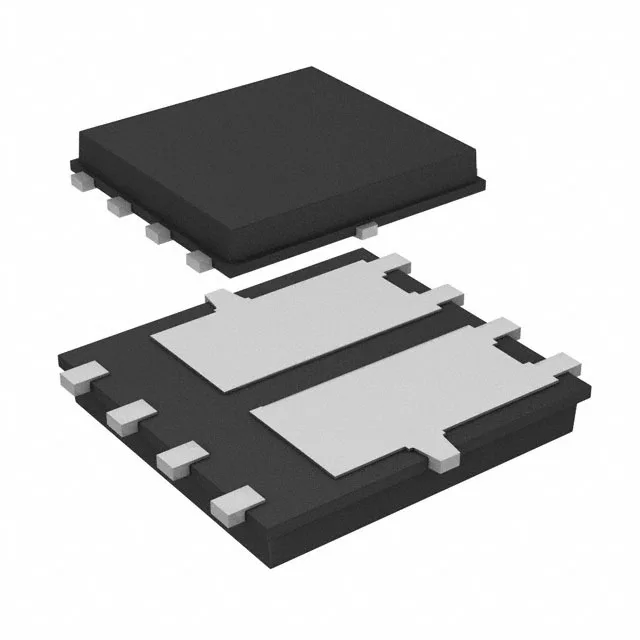

Vishay SI7923DN-T1-GE3
MPNSI7923DN-T1-GE3
End of Life
MOSFET 2P-CH 30V 4.3A 1212-8
$1.61Ref. price · indicative, final on quote
PackagingPowerPAK® 1212-8 Dual
RoHSROHS3 Compliant
SeriesTrenchFET®
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® |
| FET type | 2 P-Channel (Dual) |
| Mounting | Surface Mount |
| Drain to source voltage | 30V |
| Current - continuous drain (Id) @ 25°C | 4.3A |
| Power - max | 1.3W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| FET feature | Logic Level Gate |
| Case | PowerPAK® 1212-8 Dual |
| Vgs(th) (Max) @ id | 3V @ 250µA |
| Rds on (Max) @ id, vgs | 47mOhm @ 6.4A, 10V |
| Gate charge (Qg) (Max) @ vgs | 21nC @ 10V |
