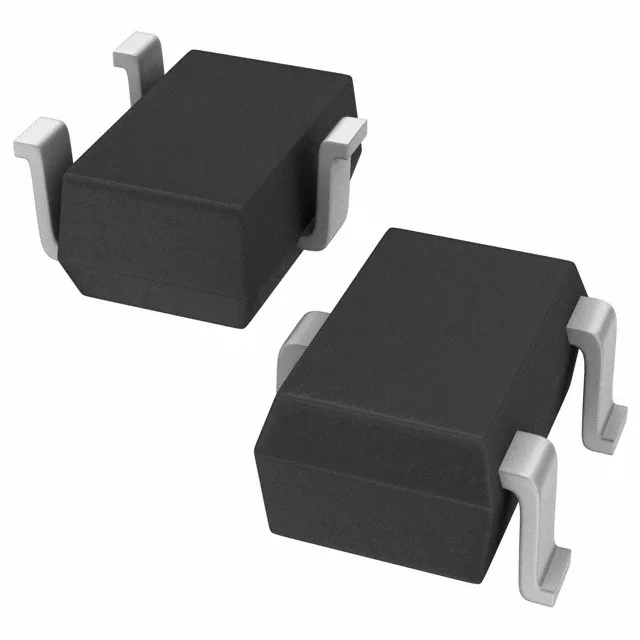

Vishay SI1308EDL-T1-BE3
MPNSI1308EDL-T1-BE3
End of Life
MOSFET N-CH 30V 1.5A/1.4A SC70-3
$0.44Ref. price · indicative, final on quote
PackagingSC-70, SOT-323
RoHSROHS3 Compliant
SeriesTrenchFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Current - continuous drain (Id) @ 25°C | 1.5A (Ta), 1.4A (Tc) |
| Power dissipation | 400mW (Ta), 500mW (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Case | SC-70, SOT-323 |
| Vgs(th) (Max) @ id | 1.5V @ 250µA |
| Rds on (Max) @ id, vgs | 132mOhm @ 1.4A, 10V |
| Gate charge (Qg) (Max) @ vgs | 4.1 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 105 pF @ 15 V |
