RS07K-GS08
Vishay
DIODE GP 800V 500MA DO219AB
[IN STOCK] In Stock: 58 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - DC reverse (Vr) | 800 V |
| Voltage - forward (Vf) (Max) @ if | 1.3 V @ 1 A |
| Current - reverse leakage @ vr | 2 µA @ 800 V |
| Current - average rectified | 500mA |
| Operating temperature - junction | -55°C ~ 150°C |
| Grade | Automotive |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Standard |
| Qualification | AEC-Q101 |

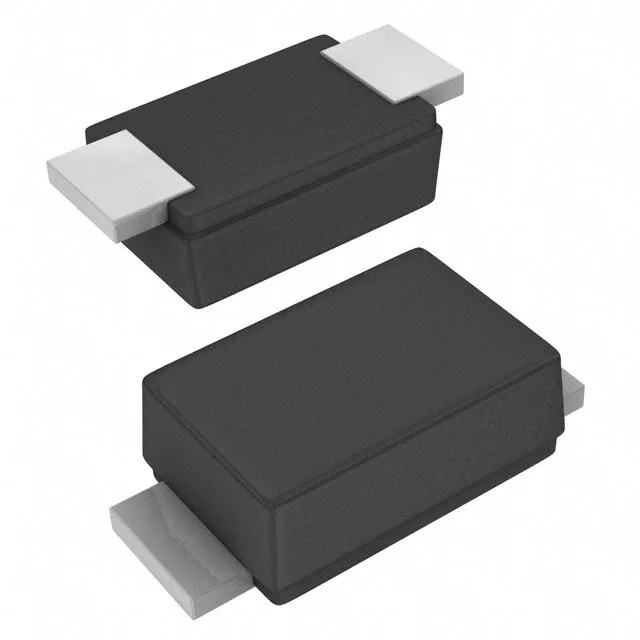

| Case | DO-219AB |
| Capacitance @ vr, | 4pF @ 4V, 1MHz |
| Reverse recovery time | 300 ns |
RS07K-GS08
[ALLOC] verified
