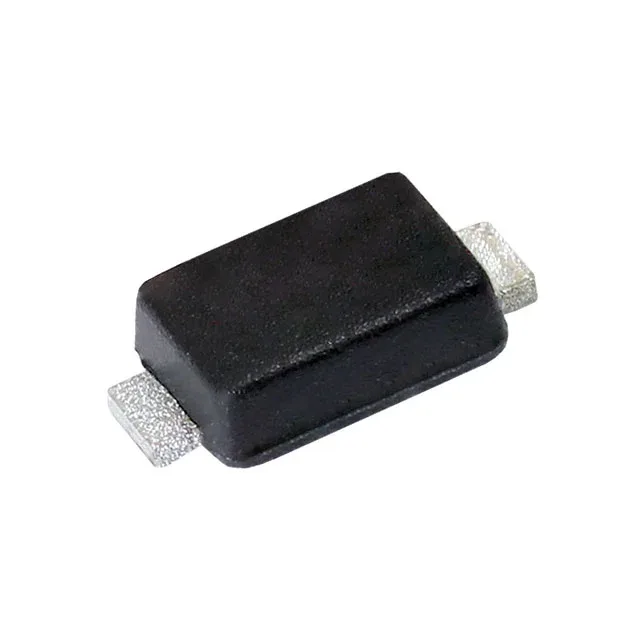

BAT165-HG3/H
Vishay · Automotive, AEC-Q101 Series
DIODE SCHOTTKY 40V 500MA DO219AC
[IN STOCK] In Stock: 372 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | Automotive, AEC-Q101 |
| Diode type | Schottky |
| Mounting | Surface Mount |
| Voltage - DC reverse (Vr) | 40 V |
| Voltage - forward (Vf) (Max) @ if | 540 mV @ 250 mA |
| Current - reverse leakage @ vr | 8 µA @ 40 V |
| Current - average rectified | 500mA |
| Operating temperature - junction | 150°C |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | DO-219AC |
| Capacitance @ vr, | 8.4pF @ 10V, 1MHz |
