UnitedSiC — Logic ICs

UnitedSiC Logic ICs — 18 part numbers with specifications and datasheets. Filter by key specs and request a quote on ICBOMS.

Current - Continuous Drain (Id) @ 25°C
85A (Tc) · 27A (Tc) · 65A (Tc) · 18.4A (Tc)
Power Dissipation (Max)
441W (Tc) · 136.4W (Tc) · 429W (Tc) · 166.7W (Tc)
Rds On (Max) @ Id, Vgs
35mOhm @ 50A, 12V · 105mOhm @ 20A, 12V · 45mOhm @ 40A, 12V · 180mOhm @ 5A, 12V
Gate Charge (Qg) (Max) @ Vgs
51 nC @ 15 V · 23 nC @ 12 V · 43 nC @ 12 V · 25.7 nC @ 12 V
Input Capacitance (Ciss) (Max) @ Vds
1500 pF @ 100 V · 760 pF @ 100 V · 738 pF @ 100 V · 7824 pF @ 800 V
Drain to Source Voltage (Vdss)
650 V · 1200 V · 750 V
Operating Temperature
-55°C ~ 175°C (TJ) · 175°C (TJ) · -55°C ~ 175°C
Package / Case

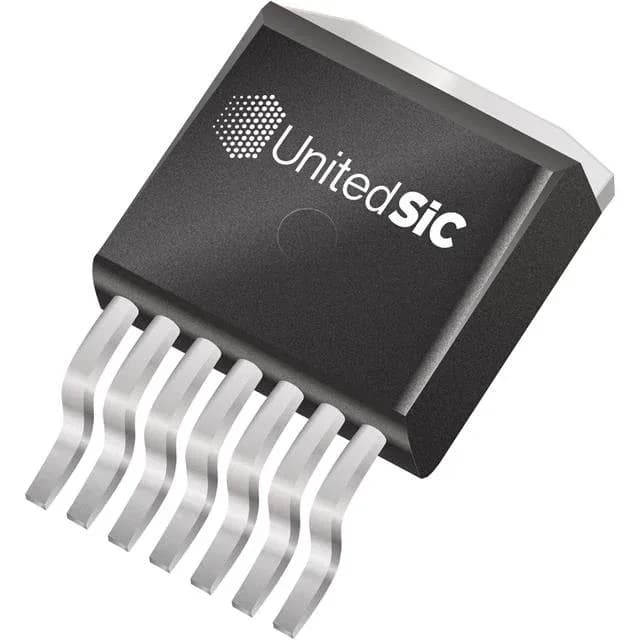

TO-247-3 · TO-263-8, D²Pak (7 Leads + Tab), TO-263CA · TO-247-4
