STD35NF06L
UMW
[IN STOCK] In Stock: 727 pcs
MOQ 5 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | UMW |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 60 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 35A (Tc) |
| Power dissipation | 105W (Tc) |
| Operating temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |

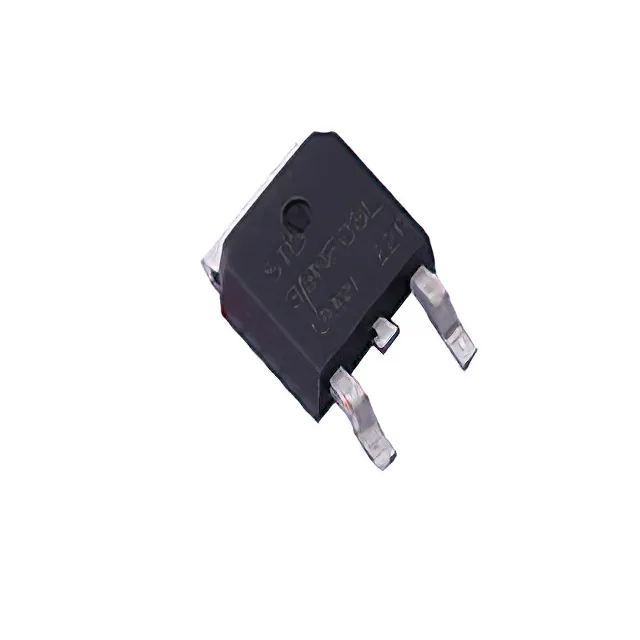

| Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Vgs(th) (Max) @ id | 4V @ 250µA |
| Rds on (Max) @ id, vgs | 20mOhm @ 30A, 10V |
| Gate charge (Qg) (Max) @ vgs | 60 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1300 pF @ 25 V |
STD35NF06L
