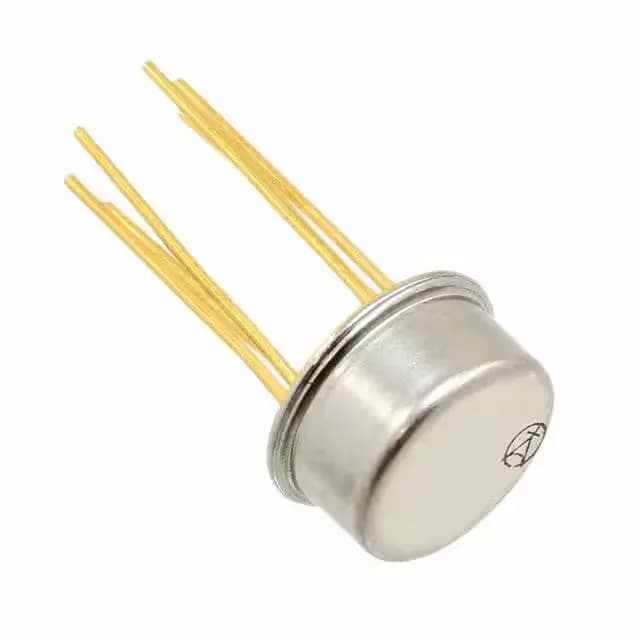

TT Electronics/Optek Technology JANTX4N49A
MPN JANTX4N49A
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
OPTOISO 1KV TRANS W/BASE TO78-6
In Stock: 432 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$29.10 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$29.10
10+ pcs
$26.19
30+ pcs
$23.86
100+ pcs
$21.53
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (15)
Package / Case TO-78-6 Metal Can
Output / Current 50mA
Full Technical Specifications
15 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Input type | DC |
| Output type | Transistor with Base |
| Mounting | Through Hole |
| Voltage - isolation | 1000VDC |
| Voltage - output | 40V |
| Voltage - forward (Vf) | 1.5V (Max) |
| Current - output (Channel) | 50mA |
| Current transfer ratio | 1000% @ 1mA |
| Current - DC forward (If) | 40 mA |
| Operating temperature | -55°C ~ 125°C |
| Package | Bulk |
| Case | TO-78-6 Metal Can |
| Channels | 1 |
| Vce saturation | 300mV |
| Rise (Fall time) | 20µs, 20µs (Max) |
