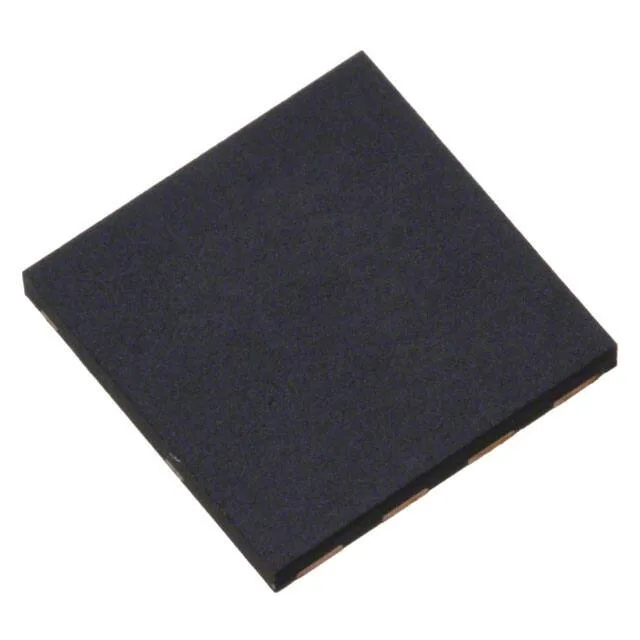

TK20V60W5,LVQ
MPNTK20V60W5,LVQ
End of Life
MOSFET N-CH 600V 20A 4DFN
$3.09Ref. price · indicative, final on quote
Packaging4-VSFN Exposed Pad
RoHSROHS3 Compliant
SeriesDTMOSIV
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DTMOSIV |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 600 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 20A (Ta) |
| Power dissipation | 156W (Tc) |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Case | 4-VSFN Exposed Pad |
| Vgs(th) (Max) @ id | 4.5V @ 1mA |
| Rds on (Max) @ id, vgs | 190mOhm @ 10A, 10V |
| Gate charge (Qg) (Max) @ vgs | 55 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1800 pF @ 300 V |
