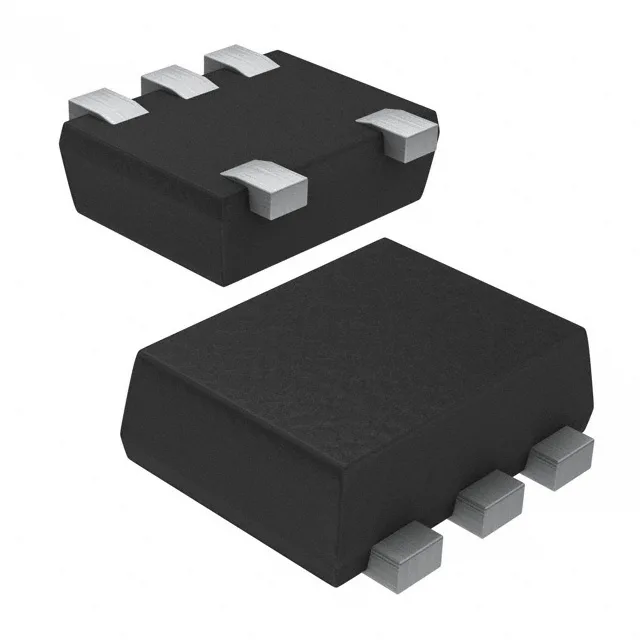

TCR2EE48,LM
Toshiba Semiconductor · TCR2EE Series
IC REG LINEAR 4.8V 200MA ESV
[IN STOCK] In Stock: 127 pcs
MOQ 5 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | TCR2EE |
| Output type | Fixed |
| Mounting | Surface Mount |
| Voltage - input | 5.5V |
| Voltage dropout | 0.2V @ 150mA |
| Voltage - output (Min (Fixed)) | 4.8V |
| Output current | 200mA |
| Current - quiescent | 60 µA |
| Operating temperature | -40°C ~ 85°C |
| PSRR | 73dB (1kHz) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | SOT-553 |
| Control features | Enable |
| Protection features | Over Current |
| Number of regulators | 1 |
| Output configuration | Positive |
