Toshiba Semiconductor SSM6P69NU,LF
MPNSSM6P69NU,LF
End of Life
MOSFET 2P-CH 20V 4A 6DFN
$0.42Ref. price · indicative, final on quote

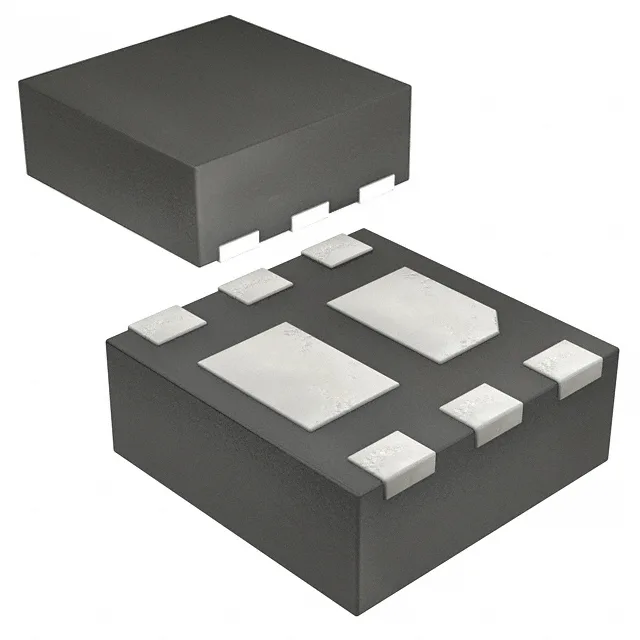

Packaging6-WDFN Exposed Pad
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | 2 P-Channel (Dual) |
| Mounting | Surface Mount |
| Drain to source voltage | 20V |
| Current - continuous drain (Id) @ 25°C | 4A (Ta) |
| Power - max | 1W (Ta) |
| Operating temperature | 150°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| FET feature | Logic Level Gate, 1.8V Drive |
| Case | 6-WDFN Exposed Pad |
| Vgs(th) (Max) @ id | 1.2V @ 1mA |
| Rds on (Max) @ id, vgs | 45mOhm @ 3.5A, 10V |
| Gate charge (Qg) (Max) @ vgs | 6.74nC @ 4.5V |
| Input capacitance (Ciss) (Max) @ vds | 480pF @ 10V |
