Toshiba Semiconductor SSM6 Series

58 variants · Toshiba Semiconductor

About the Toshiba Semiconductor Toshiba Semiconductor SSM6 Series series

The Toshiba Semiconductor Toshiba Semiconductor SSM6 Series series groups 58 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting type of Surface Mount, package of Tape & Reel (TR); Cut Tape (CT) and technology of MOSFET (Metal Oxide). Variants differ by case, current - continuous drain (Id) @ 25°C and drain to source voltage, so you can match the exact case your application requires using the selection guide below.

Select a variant by

Case: 6-TSSOP, SC-88, SOT-363 · 6-WDFN Exposed Pad
Current - continuous drain (Id) @ 25°C: 4A · 10A (Ta) · 15A (Ta) · 250mA (Ta)
Drain to source voltage: 20V · 30 V · 30V
Input capacitance (Ciss) (Max) @ vds: 12pF @ 10V · 129pF @ 15V · 1130 pF @ 15 V · 1150 pF @ 15 V
Operating temperature: 150°C · 150°C (TA) · 150°C (TJ)
Rds on (Max) @ id, vgs: 2.2Ohm @ 100mA, 4.5V · 8.9mOhm @ 4A, 10V · 20mOhm @ 4A, 10V · 84mOhm @ 2A, 4.5V
Vgs(th) (Max) @ id: 1V @ 1mA · 2.1V @ 100µA · 2.2V @ 250µA
Gate charge (Qg) (Max) @ vgs: 1.8nC @ 4.5V · 7.5 nC @ 4.5 V · 20.4 nC @ 4.5 V

Variant comparison

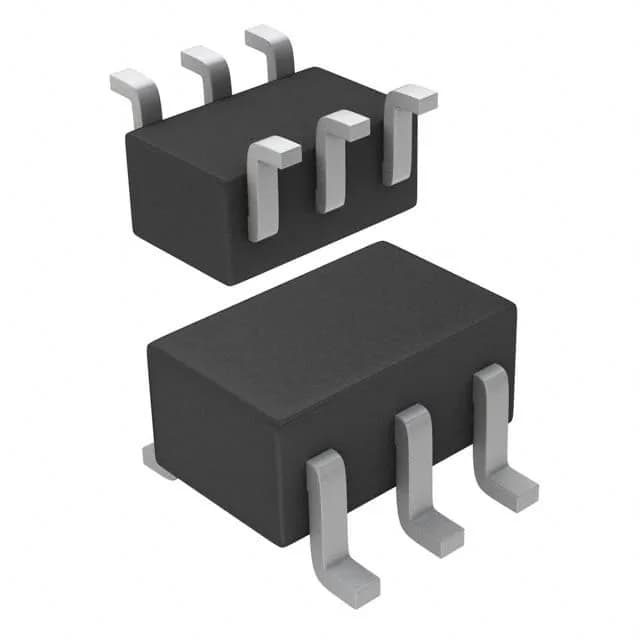

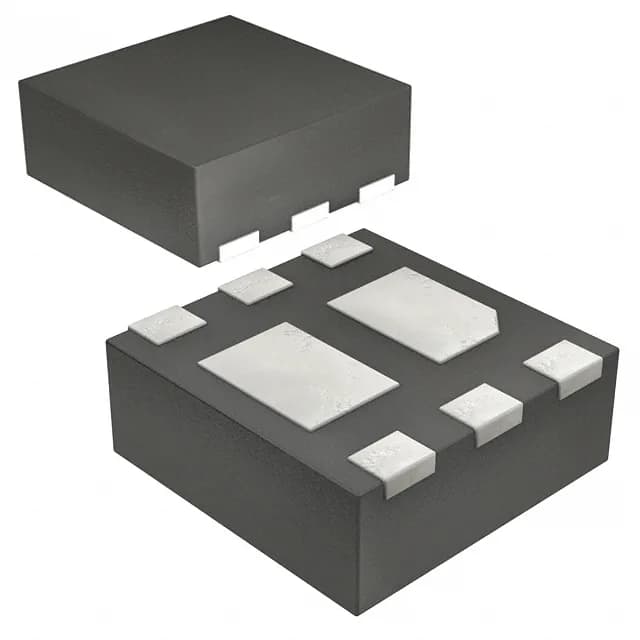

Parameter	SSM6J507NU,LF	SSM6N37FU,LF	SSM6N58NU,LF	SSM6K513NU,LF
Case	6-WDFN Exposed Pad	6-TSSOP, SC-88, SOT-363	6-WDFN Exposed Pad	6-WDFN Exposed Pad
Current - continuous drain (Id) @ 25°C	10A (Ta)	250mA (Ta)	4A	15A (Ta)
Drain to source voltage	30 V	20V	30V	30 V
Input capacitance (Ciss) (Max) @ vds	1150 pF @ 15 V	12pF @ 10V	129pF @ 15V	1130 pF @ 15 V
Operating temperature	150°C (TJ)	150°C	150°C (TJ)	150°C (TA)
Rds on (Max) @ id, vgs	20mOhm @ 4A, 10V	2.2Ohm @ 100mA, 4.5V	84mOhm @ 2A, 4.5V	8.9mOhm @ 4A, 10V
Vgs(th) (Max) @ id	2.2V @ 250µA	1V @ 1mA	1V @ 1mA	2.1V @ 100µA
Gate charge (Qg) (Max) @ vgs	20.4 nC @ 4.5 V	—	1.8nC @ 4.5V	7.5 nC @ 4.5 V

Shared specifications

Mounting type: Surface Mount
Package: Tape & Reel (TR); Cut Tape (CT)
Technology: MOSFET (Metal Oxide)

Request a quote on any Toshiba Semiconductor SSM6 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
