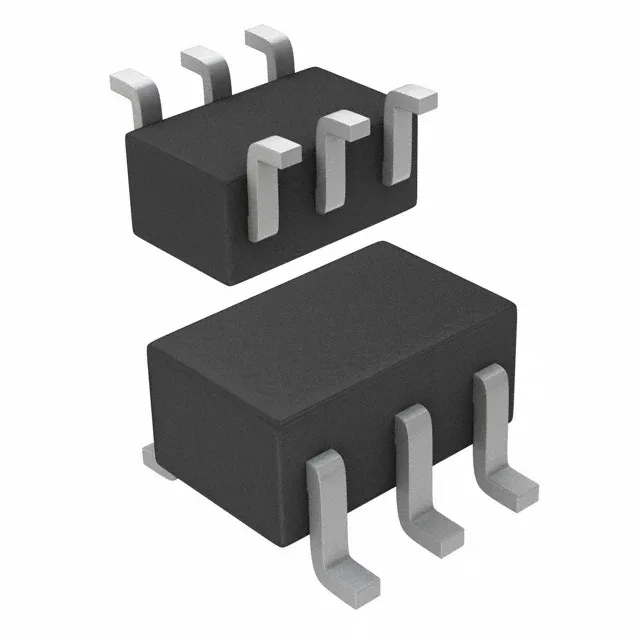

Toshiba Semiconductor RN1970(TE85L,F) — Memory (DRAM / SRAM / Flash / EEPROM)

Toshiba RN1970(TE85L,F) dual NPN pre-biased transistor, 50V

MPNRN1970(TE85L,F)
End of Life

Toshiba RN1970(TE85L,F) dual NPN pre-biased transistor, 2 NPN - Pre-Biased (Dual), 50V Vce, 100mA Ic, 250MHz fT, 200mW, SOT-363, Surface Mount.

$0.48Ref. price · indicative, final on quote
Packaging6-TSSOP, SC-88, SOT-363
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

RN1970(TE85L,F) specifications
ParameterValue
MountingSurface Mount
FET type2 NPN - Pre-Biased (Dual)
Voltage - collector emitter breakdown50V
Current - collector (Ic)100mA
Current - collector cutoff100nA (ICBO)
DC current gain (hFE) (Min) @ ic, vce120 @ 1mA, 5V
Power - max200mW
Frequency250MHz
PackageTape & Reel (TR); Cut Tape (CT)
Case6-TSSOP, SC-88, SOT-363
Resistor - base (R1)4.7kOhms
Vce saturation (Max) @ ib, ic300mV @ 250µA, 5mA

Product details

The Toshiba RN1970(TE85L,F) packs two NPN transistors with integrated bias resistors (R1 = 4.7 kΩ each) into a 6-pin SOT-363 package. Each side handles up to 100 mA collector current with a 50 V breakdown, and the pre-biased base network cuts the external resistor count — handy when you are squeezing a level-shift or driver pair into a tight board area. The 250 MHz transition frequency keeps it useful for switching up into the low-MHz range, not just DC logic.

200 mW total — plan the thermal budget

The 200 mW power dissipation limit is total for both transistors in the package, not per channel. Vce(sat) is 300 mV at 5 mA.

Active and available — no end-of-life concern

Toshiba lists the RN1970(TE85L,F) as an active product with RoHS compliance.

Frequently asked questions

Is RN1970(TE85L,F) obsolete or active?

Active. Toshiba's product status shows it as current production with no discontinuation notice. RoHS compliant.

What is the hFE of RN1970(TE85L,F)?

Minimum DC current gain (hFE) is 120 at 1 mA collector current and 5 V Vce.
