Toshiba Semiconductor and Storage TPCP8004(TE85L,F)
MPNTPCP8004(TE85L,F)
Obsolete
$0.9200Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | U-MOSIV |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 8.3A (Ta) |
| Power dissipation | 840mW (Ta) |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |

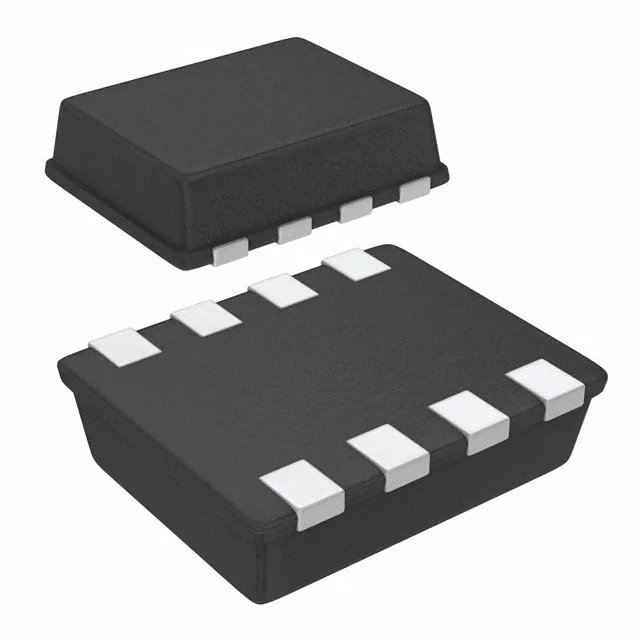

| Case | 8-SMD, Flat Lead |
| Vgs(th) (Max) @ id | 2.5V @ 1mA |
| Rds on (Max) @ id, vgs | 8.5mOhm @ 4.2A, 10V |
| Gate charge (Qg) (Max) @ vgs | 26 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1270 pF @ 10 V |
