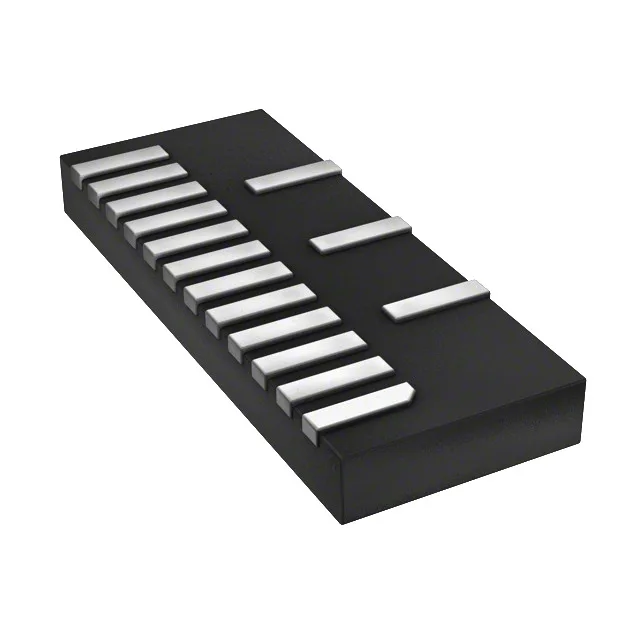

TPD8S009DSMR
Texas Instruments
Tape & Reel (TR); Cut Tape (CT)Steering (Rail to Rail)Surface Mount
Ref. price$1.6600
Lead time on requestGet quote
Texas Instruments TPD8 Series
4 variants · Texas Instruments
About the Texas Instruments TPD8 Series
The Texas Instruments TPD8 Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Surface Mount and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by applications, case and current - peak pulse (10/1000μs), so you can match the exact applications your application requires using the selection guide below. All listed Texas Instruments TPD8 Series part numbers are active and orderable.
Select a variant by
- Applications
- - · General Purpose · HDMI · USB OTG
- Case
- 8-WFDFN Exposed Pad · 15-SMD, No Lead · 20-WFQFN Exposed Pad
- Current - peak pulse (10/1000μs)
- - · 2A (8/20µs)
- Power - peak pulse
- 25W · 55W
- Type
- Steering (Rail to Rail) · Zener
- Voltage - breakdown
- 6V · 9V
- Voltage - clamping (Max) @ ipp
- - · 10V
- Voltage - reverse standoff
- - · 5.5V (Max)
Shared specifications
- Mounting
- Surface Mount
- Package
- Tape & Reel (TR); Cut Tape (CT)
Variant comparison
| Parameter | TPD8E003DQDR | TPD8S009DSMR | TPD8S300ARUKR | TPD8S300RUKR |
|---|---|---|---|---|
| Applications | General Purpose | HDMI | - | USB OTG |
| Case | 8-WFDFN Exposed Pad | 15-SMD, No Lead | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Current - peak pulse (10/1000μs) | 2A (8/20µs) | - | — | — |
| Power - peak pulse | 55W | 25W | — | — |
| Type | Zener | Steering (Rail to Rail) | — | — |
| Voltage - breakdown | 6V | 9V | — | — |
| Voltage - clamping (Max) @ ipp | 10V | - | — | — |
| Voltage - reverse standoff | - | 5.5V (Max) | — | — |
Request a quote on any Texas Instruments TPD8 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
