LM74701QDDFRQ1
Texas Instruments
Surface Mount-40°C ~ 125°CTape & Reel (TR); Cut Tape (CT)
Ref. price$2.37
Lead time on requestGet quote
Texas Instruments LM74 Discrete Semiconductors Series
3 variants · Texas Instruments
About the Texas Instruments LM74 Discrete Semiconductors Series
The Texas Instruments LM74 Discrete Semiconductors Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common FET type of N-Channel, package of Tape & Reel (TR); Cut Tape (CT) and ratio - Input:Output of 1:1. Variants differ by applications, case and current - supply, so you can match the exact applications your application requires using the selection guide below. All listed Texas Instruments LM74 Discrete Semiconductors Series part numbers are active and orderable.
Select a variant by
- Applications
- Automotive, Redundant Power Supplies · General Purpose · Redundant Power Supplies
- Case
- 12-WFDFN Exposed Pad · SOT-23-8
- Current - supply
- 80 µA · 413 µA
- Delay time - OFF
- 450 ns · 500 ns
- Delay time - ON
- 1.4 µs · 2.6 µs
- Internal switch
- No · Yes
- Mounting
- Surface Mount · Surface Mount, Wettable Flank
- Operating temperature
- -55°C ~ 125°C (TA) · -40°C ~ 125°C · -40°C ~ 125°C (TJ)
Shared specifications
- FET type
- N-Channel
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Ratio - Input:Output
- 1:1
- Type
- N+1 ORing Controller
Variant comparison
| Parameter | LM74701QDDFRQ1 | LM74801QDRRRQ1 | LM74800MDRRR |
|---|---|---|---|
| Applications | Redundant Power Supplies | Automotive, Redundant Power Supplies | General Purpose |

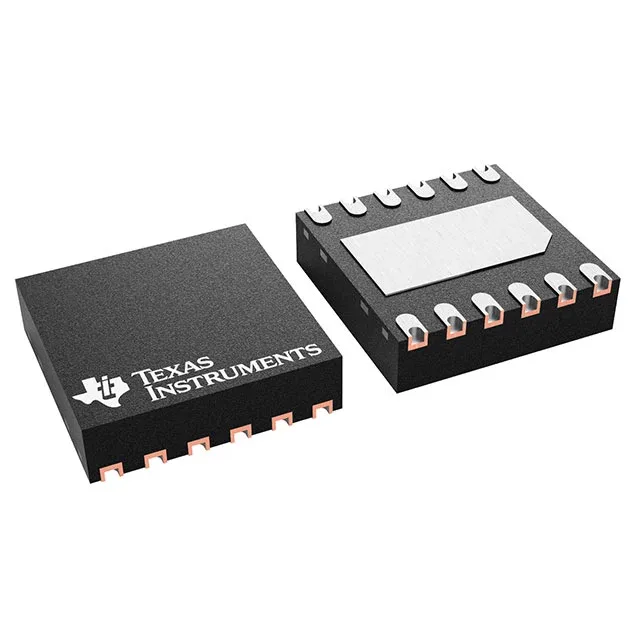

| Case | SOT-23-8 | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad |
| Current - supply | 80 µA | 413 µA | 413 µA |
| Delay time - OFF | 450 ns | 500 ns | 500 ns |
| Delay time - ON | 1.4 µs | 2.6 µs | 2.6 µs |
| Internal switch | Yes | No | No |
| Mounting | Surface Mount | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Operating temperature | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -55°C ~ 125°C (TA) |
Request a quote on any Texas Instruments LM74 Discrete Semiconductors Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
