Texas Instruments
Texas Instruments TUSB1064RNQT, USB Type-C Buffer/ReDriver, 10 Gbps max data rate, 2 channels, 3V–3.6V supply, 40-WFQFN Exposed Pad, 0°C to 70°C.
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Buffer, ReDriver |
| Mounting | Surface Mount |
| Supply voltage | 3V ~ 3.6V |
| Operating temperature | 0°C ~ 70°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Delay time | 10.0ns |
| Applications | USB Type C |
| Case | 40-WFQFN Exposed Pad |
| Data rate | 10Gbps |
| Channels | 2 |
| Capacitance - input | 10 pF |
| Signal conditioning | Input Equalization, Output De-Emphasis |

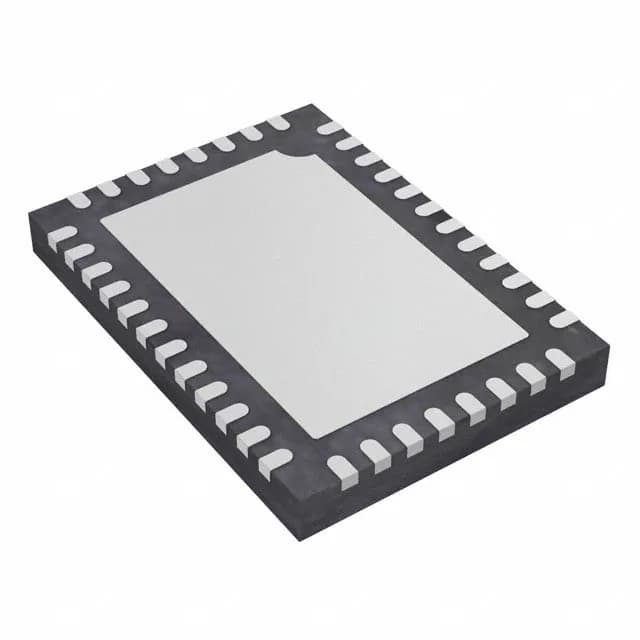

This part lives in a 40-pin WFQFN with an exposed thermal pad, body size 6x4 mm. The pad is the main heat path and the ground return — it needs a solid solder joint to the board's thermal land.
TI lists the TUSB1064RNQT as active. For a BOM freeze, that means no forced redesign cycle from this line item. The part is ROHS3 compliant, so no exemption-expiry concern on the compliance side.
