What this part is and where it fits

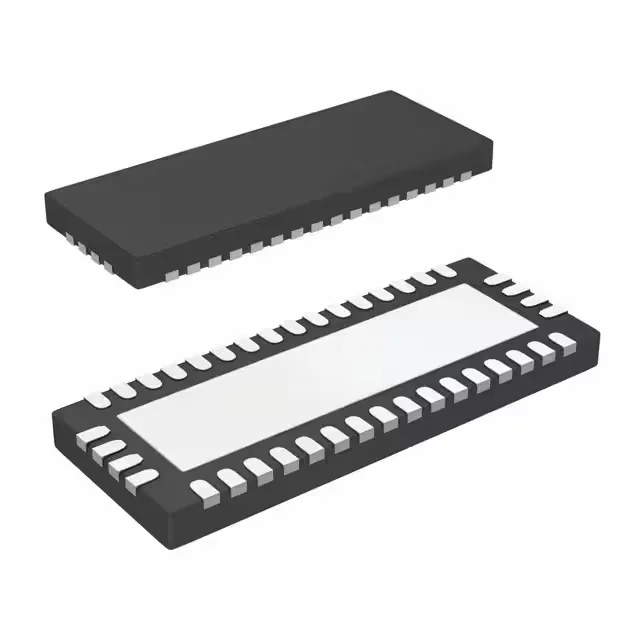

The Texas Instruments TS3DV621RUAR is a video switch IC designed for routing DVI 1.0 and HDMI 1.4 signals in consumer video equipment. It is a logic-controlled switch, not a buffer or redriver, so the signal path is passive through the switch matrix. The 3.0V to 3.6V supply range means a clean 3.3V rail is the nominal fit, with headroom for regulator tolerance on either side. The 42-WQFN (3.5x9) package is a low-profile, exposed-pad QFN that requires a well-designed thermal land pattern for adequate heat dissipation if the switch carries multiple high-speed lanes simultaneously.
Standards compliance and signal integrity
Compliance with DVI 1.0 and HDMI 1.4 sets the bandwidth and signal integrity floor. This part is intended for consumer video applications where the switch matrix must pass differential TMDS signals up to the HDMI 1.4 data rate without excessive jitter or attenuation. The logic control interface allows the switch to be toggled by a GPIO or a dedicated video controller. For designs that need to route video between multiple sources and a single display, this part handles the physical layer switching.
