Texas Instruments TPS65175BRSHR — Power Management (PMIC / Gate Driver)

TI TPS65175BRSHR LCD Power IC, 8.6V-14.7V Input, Active

MPNTPS65175BRSHR
End of Life

Texas Instruments TPS65175BRSHR power management IC, LCD TV/Monitor application, 8.6V ~ 14.7V supply, -40°C ~ 85°C, 56-VFQFN Exposed Pad, 56-VQFN (7x7), Tape & Reel, Active.

$1.8914Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TPS65175BRSHR specifications
ParameterValue
MountingSurface Mount
Supply voltage8.6V ~ 14.7V
Operating temperature-40°C ~ 85°C
PackageTape & Reel (TR) Cut Tape (CT)
ApplicationsLCD TV/Monitor
ManufacturerTexas Instruments
Case56-VFQFN Exposed Pad

Product details

LCD panel power — what the 8.6 V to 14.7 V input means

Its 8.6 V to 14.7 V input range matches the typical DC bus from an external adapter or internal power supply in consumer and commercial displays.

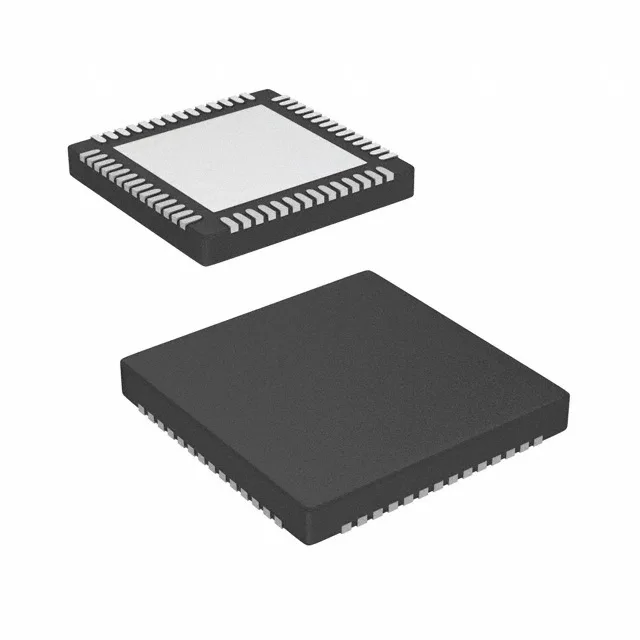

Package and thermal — 56-VQFN with exposed pad

Packaging is Tape & Reel (TR) with Cut Tape (CT) option — the reels feed into standard pick-and-place lines. Store the reels dry; the VQFN moisture sensitivity level should be confirmed from the latest TI packing label.

Base product number is TPS65175, which covers the family variants. If a specific feature set or output voltage configuration is needed, check the TPS65175 family datasheet for the full suffix options.

Frequently asked questions

What input voltage does the TPS65175BRSHR need?

It requires an 8.6 V to 14.7 V supply rail. This is the typical DC input range for LCD TV and monitor power boards fed from an external adapter or internal AC-DC stage.
