TPS63030DSKT

Texas Instruments

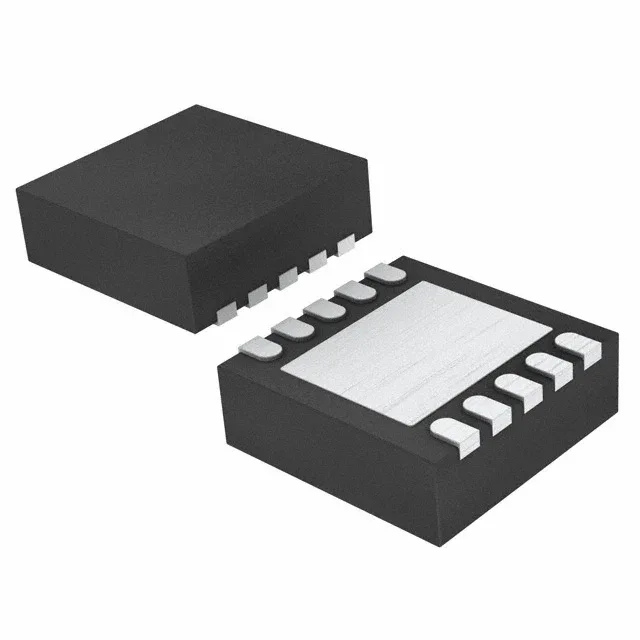

Texas Instruments TPS63030DSKT, adjustable buck-boost switching regulator, 1.8 V to 5.5 V input, 900 mA switch current, 2.4 MHz switching frequency, synchronous rectification, 10-WFDFN exposed-pad package, -40°C to 85°C operation.

Texas Instruments TPS63030DSKT
Download datasheet (PDF)
[IN STOCK] In Stock: 24 pcs
$7.18/ pc

Volume pricing

Buy Now

MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T

Technical specifications

TPS63030DSKT specifications
Parameter / AttributeSpecification / Value
Output typeAdjustable
MountingSurface Mount
Voltage - input5.5V
Voltage - output5.5V
Voltage - output (Min (Fixed))1.2V
Output current900mA (Switch)
Frequency - switching2.4MHz
I/O channels1
Operating temperature-40°C~85°C(TA)
PackageTape & Reel (TR); Cut Tape (CT)
FunctionStep-Up/Step-Down
TopologyBuck-Boost
Case10-WFDFN Exposed Pad
Output configurationPositive
Synchronous rectifierYes

Technical details

Single-cell Li-Ion to 3.3 V — no drama

Switching at 2.4 MHz lets you use a small inductor — 2.2 µH or 1 µH in a 2.0 mm or 1.5 mm footprint — which matters when the board is already tight around the battery connector. The 900 mA switch current limit means this part can deliver about 600 mA to 700 mA at 3.3 V from a Li-Ion cell, depending on the dropout headroom and inductor selection.

10-SON package — thermal pad is mandatory

The 0.5 mm pitch on the outer leads is fine for a standard reflow profile; a hot-air station on a field repair is possible but the pad is small enough that the part can tombstone if the paste volume is uneven.
