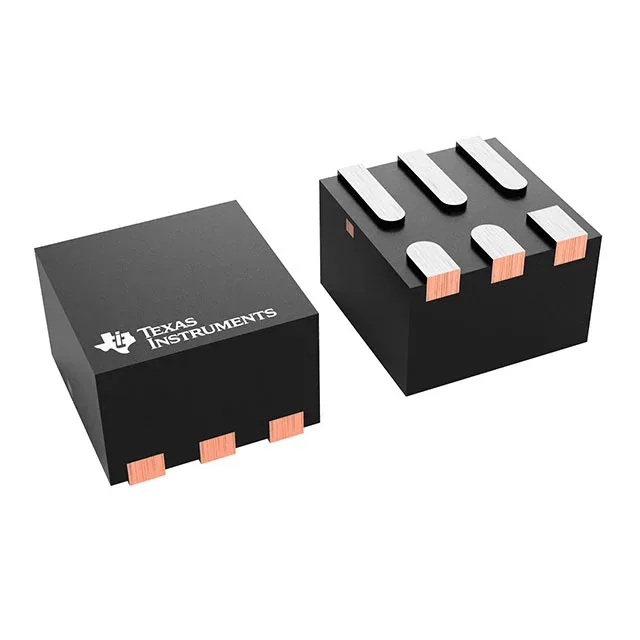

Texas Instruments TPS62824DMQR, Step-Down Buck, 1 A Output, Adjustable, 2.4 V to 5.5 V Input, 2.2 MHz Switching, 6-VSON-HR (1.5x1.5 mm), –40°C to 125°C
| Parameter | Value |
|---|---|
| Output type | Adjustable |
| Mounting | Surface Mount |
| Voltage - input | 5.5V |
| Voltage - output | 4V |
| Voltage - output (Min (Fixed)) | 0.6V |
| Output current | 1A |
| Frequency - switching | 2.2MHz |
| I/O channels | 1 |
| Operating temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Function | Step-Down |
| Topology | Buck |
| Case | 6-VFDFN |
| Output configuration | Positive |
| Synchronous rectifier | Yes |
The TPS62824DMQR is a 1A step-down (buck) converter from Texas Instruments, designed for tight point-of-load rails where board space is at a premium. It accepts an input from 2.4 V up to 5.5 V and delivers an adjustable output down to 0.6 V.
Minimum input of 2.4 V means it runs from a single Li-ion cell (3.0 V–4.2 V) or a regulated 3.3 V/5 V bus. The 6-VSON-HR package (1.5 x 1.5 mm) with an exposed thermal pad pulls heat into the PCB copper.
