Texas Instruments TPS3760E012DYYR — Power Management (PMIC / Gate Driver)

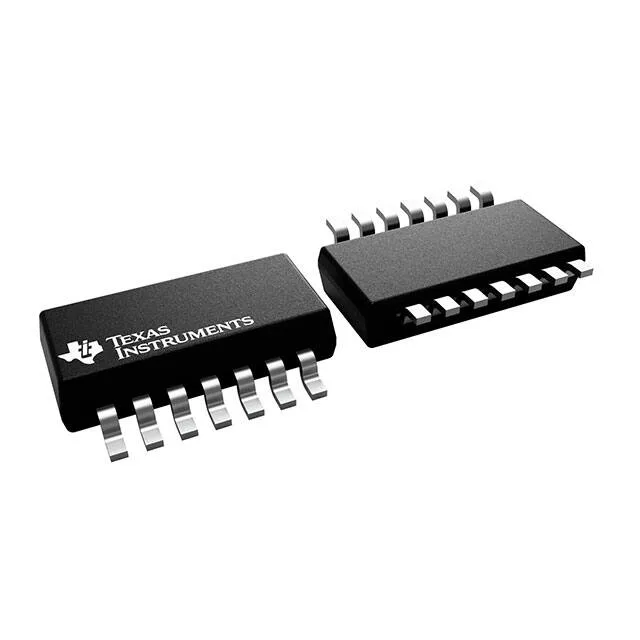

TPS3760E012DYYR Texas Instruments Simple Reset/Power-On

MPNTPS3760E012DYYR
Active

Texas Instruments TPS3760E012DYYR, Simple Reset/Power-On Reset, Active Low, Open Drain, 0.8V Threshold, 100µs Max Reset Timeout, -40°C to 125°C, SOT-23-14 Thin Package, Surface Mount.

$2.0400Ref. price · indicative, final on quote
Texas Instruments TPS3760E012DYYR datasheet (PDF)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TPS3760E012DYYR specifications
ParameterValue
TypeSimple Reset/Power-On Reset
MountingSurface Mount
Voltage - threshold0.8V
Number of voltages monitored1
Operating temperature-40°C~125°C(TJ)
ResetActive Low
OutputOpen Drain or Open Collector
PackageTape & Reel (TR); Cut Tape (CT)
Reset timeout100µs Maximum
CaseSOT-23-14 Thin, SOT-23 Variant

Product details

0.8V threshold supervisor for low-voltage rails

The TPS3760E012DYYR: Its 0.8V threshold makes it a fit for tracking sub-1V core supplies in modern processors, FPGAs, or ASICs where the margin between nominal and brownout is tight. The active-low, open-drain output asserts when the monitored voltage drops below 0.8V and holds the reset state for a maximum of 100µs after the rail returns above the threshold, providing a clean power-on reset signal.

SOT-23-14 Thin — layout and thermal note

Housed in the 14-SOT-23-THIN package, a surface-mount device with a small footprint. No external heatsinking is needed for this low-power supervisor; standard PCB copper is sufficient.

Frequently asked questions

What is the closest pin-compatible alternative to TPS3760E012DYYR in this component family?

The TPS3760E011DYYR is a pin-compatible variant within the same TPS3760 family. The key difference is the voltage threshold; the E011 variant monitors a different threshold level. Verify the specific threshold required for your application before substituting.
